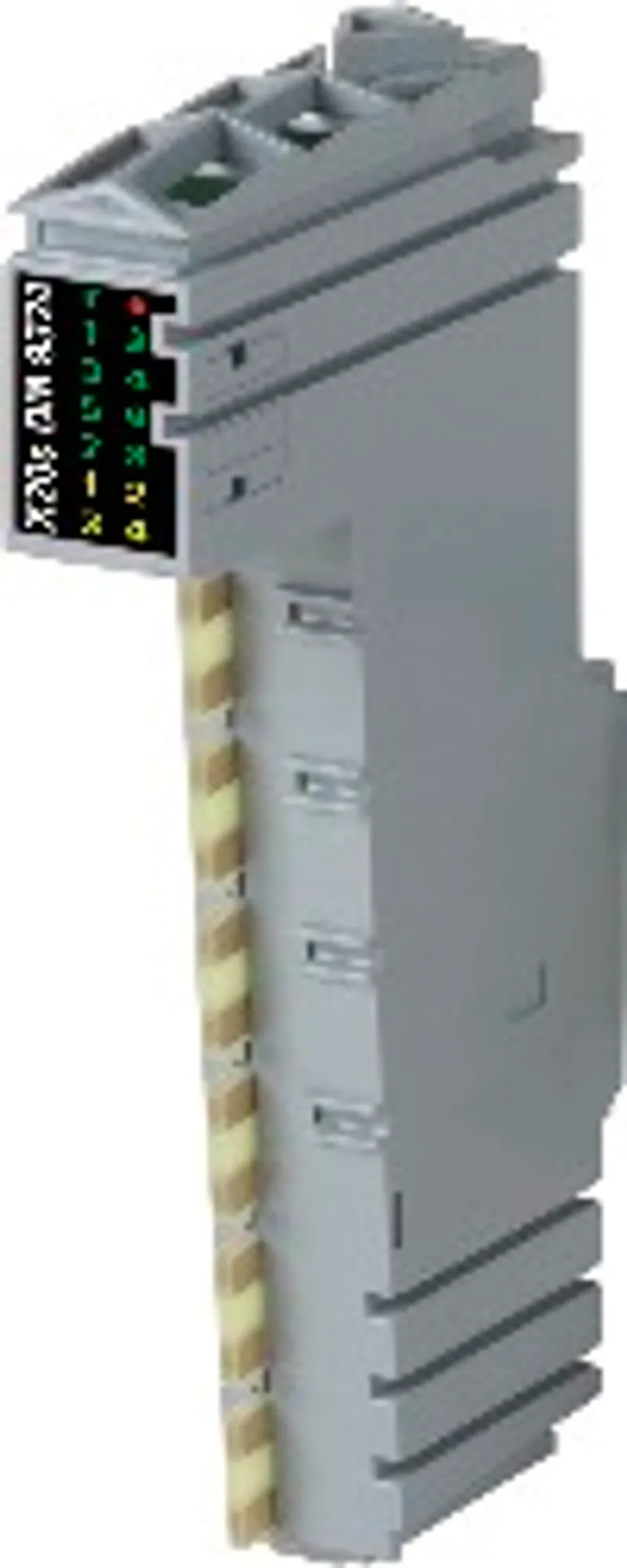

B&R X20cDM9324

I/O module, 8 digital inputs 24 VDC for 1-wire connections

MPN: X20cDM9324
Category: Digital inputs/outputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20cDM9324?

8 digital inputs, sink connections

4 digital outputs, source connections

1-wire connections

Configurable software input filter for entire module

Integrated output protection

Specifications

Short description

I/O module

8 digital inputs 24 VDC for 1-wire connections, 4 digital outputs 24 VDC for 1-wire connections

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Outputs	Yes, using LED status indicator and software (output error status)
Power consumption – Bus	0.21 W
Power consumption – Internal I/O	0.5 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Nominal voltage	24 VDC
B&R ID code	0xE225
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	+0.21 (note: Number of outputs x R DS(on) x Nominal output current 2)

Digital inputs

Input filter – Hardware	≤100 µs
Input filter – Software	Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
Switching threshold – Low	<5 VDC
Switching threshold – High	>15 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Typ. 3.75 mA
Input circuit	Sink
Connection type	1-wire connections
Input resistance	Typ. 6.4 kΩ
Insulation voltage between channel and bus	500 V eff

Digital outputs

Switching delay – 0 → 1	<300 µs
Switching delay – 1 → 0	<300 µs
Switching frequency – Resistive load	Max. 500 Hz
Switching frequency – Inductive load	See section "Switching inductive loads".
Variant	Current-sourcing FET
Switching voltage	24 VDC -15% / +20%
Nominal output current	0.5 A
Total nominal current	2 A
Connection type	1-wire connections
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current"); Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
R DS(on)	210 mΩ
Peak short-circuit current	<12 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Approx. 10 ms (depends on the module temperature)
Braking voltage when switching off inductive loads	Typ. 50 VDC
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x bus module X20cBM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20cBM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through.
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (7)
