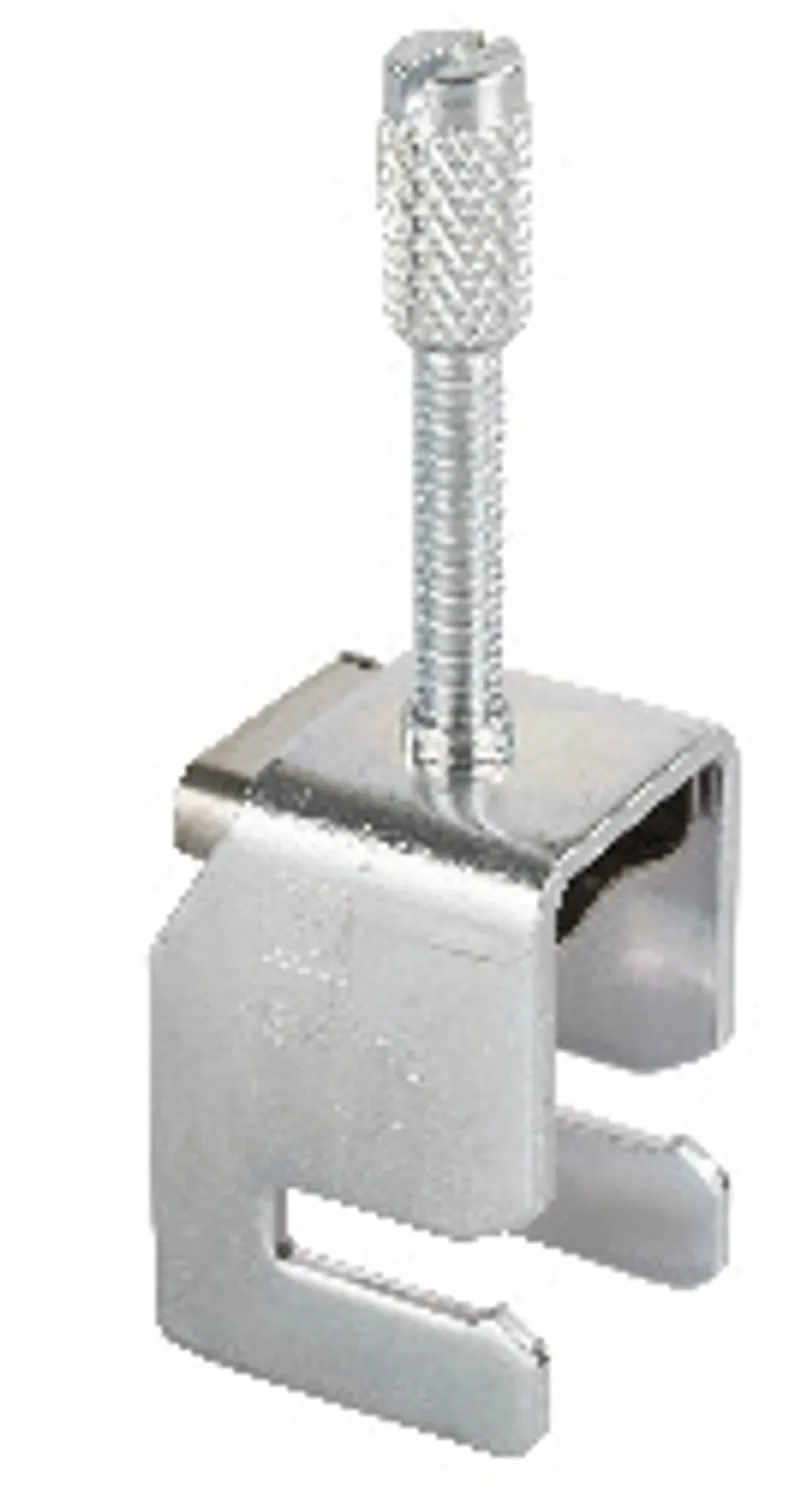

B&R X20AC0SA14.0010
Accessories, shield connection clamp for X20
- MPN
- X20AC0SA14.0010
- Category
- Shield connection clamp
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20AC0SA14.0010?
X20 shield connection clamp 3 to 14 mm, 10 pieces
Specifications
Short description
| Accessories | Shield connection clamp for X20 |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Connection type | Screw terminal |
Mains connection
| Terminal cable cross section dimension of shield connection | 3 to 14 mm |
Mechanical properties
| Dimensions – Width | 17 mm |
| Dimensions – Length | 19.5 mm |
| Dimensions – Height | 59.3 mm |
| Torque for connections – M4 | 0.8 Nm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (1)
X20AC0SA14.0010: frequently asked questions
When can X20AC0SA14.0010 be shipped?
X20AC0SA14.0010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20AC0SA14.0010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20AC0SA14.0010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AC0SA14.0010, subject to availability and destination.
