Home / B&R / Terminals / B&R 8TB4103.222A-10
B&R

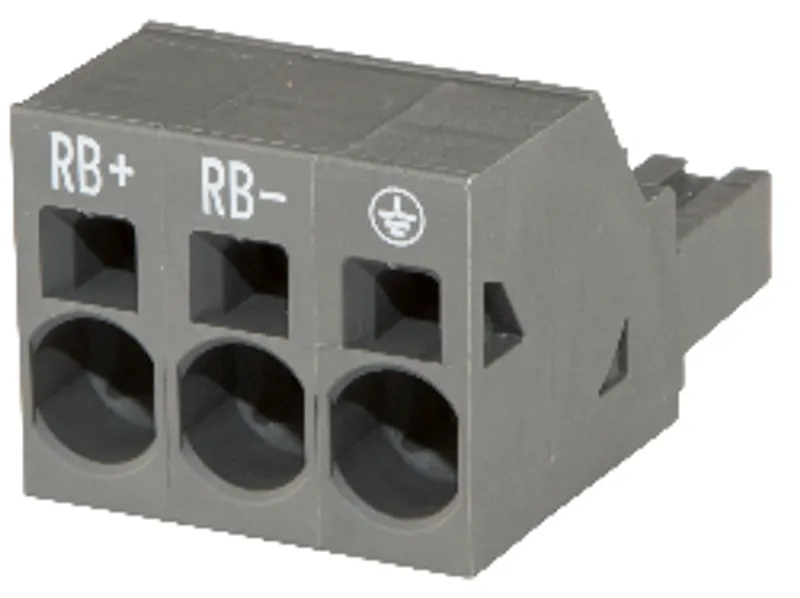

B&R 8TB4103.222A-10

3-pin push-in terminal block, one-row, pitch: 10.16 mm

MPN
8TB4103.222A-10
Category
Terminals
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8TB4103.222A-10?

3-pin push-in terminal block, one-row, pitch: 10.16 mm, label 2: PE RB- RB+, coding A: 000

Specifications

General information

Certifications – CEYes
Certifications – UKCAYes
Certifications – CRA (Cyber Resilience Act)Not applicable
Certifications – ULcULus E225616; Power conversion equipment
Short descriptionPush-in terminal block, one-row, for 8EI0xxHxDxx.xxxx-1 / 8EI0x4HxSxx.xxxx-1 servo drives, connector X6 (external braking resistor)

Terminal block

Connection cross section – AWG wire20 to 4 AWG
Connection cross section – Wire end sleeves with plastic covering0.75 to 10 mm²
Connection cross section – Single-wire0.75 to 16 mm²
Connection cross section – Fine-stranded wires0.75 to 16 mm²
Connection cross section – With wire end sleeve0.75 to 16 mm²
NoteLabel 2: PE RB- RB+; Coding A: 000; 1-row
Number of pins3
Type of terminal blockPush-in spring connector
Cable typeOnly copper wires (no aluminum wires!)
CodingA
Pitch10.16 mm
Wire stripping length18 mm

Electrical properties

Nominal voltage1000 V (IEC) / 600 V (UL)
Nominal current76 A (IEC) / 66 A (UL)

Mechanical properties

Dimensions – Width30.5 mm
Dimensions – Height25.1 mm
Dimensions – Depth44.5 mm
Weight24 g
