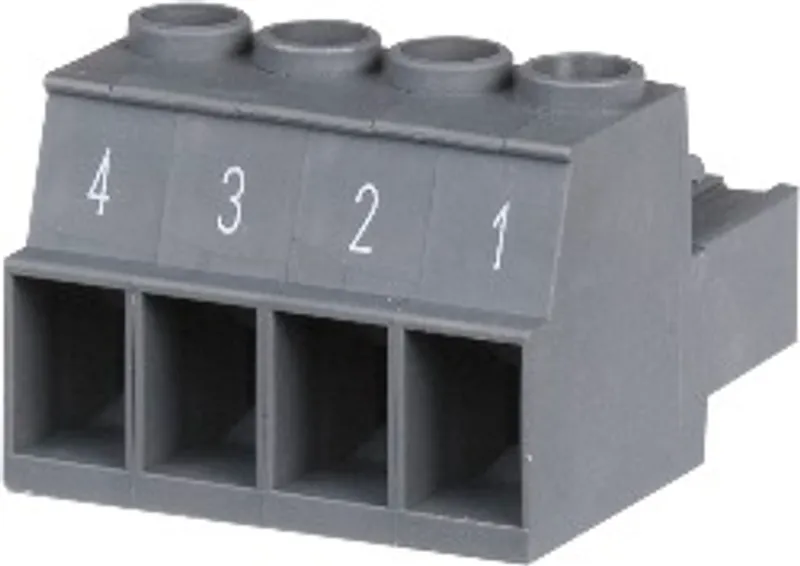

B&R 8TB3104.201H-10

4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm

MPN: 8TB3104.201H-10

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8TB3104.201H-10?

4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 1: Numbered consecutively, coding H: 0111

Specifications

General information

Certifications – UKCA

Yes

Terminal block

Connection cross section – AWG wire	24 to 10 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 4 mm²
Connection cross section – Single-wire	0.2 to 10 mm²
Connection cross section – Fine-stranded wires	0.2 to 6 mm²
Connection cross section – With wire end sleeve	0.25 to 6 mm²
Note	Label 1: Numbered consecutively; Coding H: 0111; 1-row
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	H
Pitch	7.62 mm
Tightening torque	0.7 to 0.8 Nm

Electrical properties

Nominal voltage	1000 V (IEC) / 600 V (UL)
Nominal current	41 A (IEC) / 41 A (IEC)

Mechanical properties

Dimensions – Width	30.4 mm
Dimensions – Height	19.7 mm
Dimensions – Depth	35.3 mm
Weight	3.3 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

CAD & dimension drawings

3D files STEP ACOPOSmulti terminalsZIP · 8 MB · 1.1 (02/18/2014)

8TB3104.201H-10: frequently asked questions

When can 8TB3104.201H-10 be shipped?

8TB3104.201H-10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8TB3104.201H-10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8TB3104.201H-10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB3104.201H-10, subject to availability and destination.
