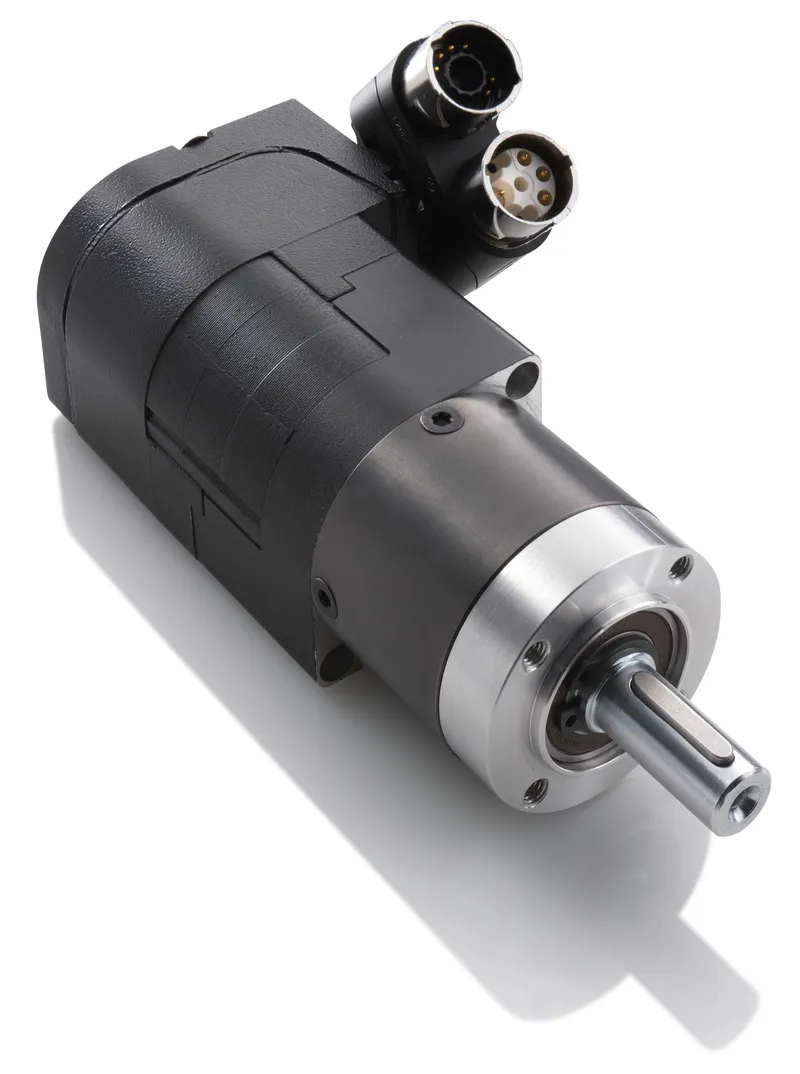

B&R 8LVB33.ee040LjDn00

Gear motor 8LVB33, gear ratio: 40, gearbox 8GM50, 2-stage

MPN: 8LVB33.ee040LjDn00
Category: 8LVB3 (size 3; direct mounted gearbox)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8LVB33.ee040LjDn00?

Gear motor 8LVB33, gear ratio: 40, gearbox 8GM50, 2-stage, nominal speed: 2100 rpm

Specifications

Nominal speed nN [rpm]	2100
Number of pole pairs	4
Nominal torque Mn [Nm]	2.45
Nominal current IN [A]	7.3
Stall torque M0 [Nm]	2.6
Stall current I0 [A]	7.9
Maximum torque Mmax [Nm]	7.2
Maximum current Imax [A]	26
Maximum speed nmax [rpm]	6600
Torque constant KT [Nm/A]	0.33
Voltage constant KE [V/1000 rpm]	19.9
Stator resistance R2ph [Ω]	0.503
Stator inductance L2ph [mH]	2
Electrical time constant tel [ms]	3.98
Thermal time constant ttherm [min]	34
Moment of inertia J [kgcm2]	0.95
Holding torque of brake MBr [Nm]	3.2
Moment of inertia of brake JBr [kgcm2]	0.38
Number of gear stages	2
Gear ratio i	40
Nominal output torque T2N [Nm]	82
Max. output torque T2max [Nm]	131
Emergency switch-off torque T2stop [Nm]	164
Max. average drive speed n1N50% [rpm] at 50% T2N and S1	4000
Max. average drive speed n1N100% [rpm] at 100% T2N and S1	4000
Max. backlash Jt [arcmin]	9
Torsional rigidity Ct21 [Nm/arcmin]	8.3
Max. radial force Frmax [N] for 30,000 h	1700
Max. radial force Frmax [N] for 20,000 h	1900
Max. axial force Famax [N] for 30,000 h	1500
Max. axial force Famax [N] for 20,000 h	2000
Operating noise LPA [dB(A)]	60
Efficiency at full load ŋ [%]	94
Moment of inertia J1 [kgcm2]	0.024
Max. permissible output torque MK0 [Nm]	80.5
Max. permissible peak torque MKmax [Nm]	82
Mass of motor (without brake) [kg]	2.45
Mass of brake [kg]	0.29
Mass of gearbox [kg]	5.04
ACOPOS 8Vxxxx.xx...	1090
ACOPOSmulti 8BVIxxxx...	-
ACOPOSmicro 80VD100Px.xxxx-01	C00X
ACOPOS P3 8EIxxxx...	8X8M
Cross section for B&R motor cables [mm2]	0.75
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	Not applicable
