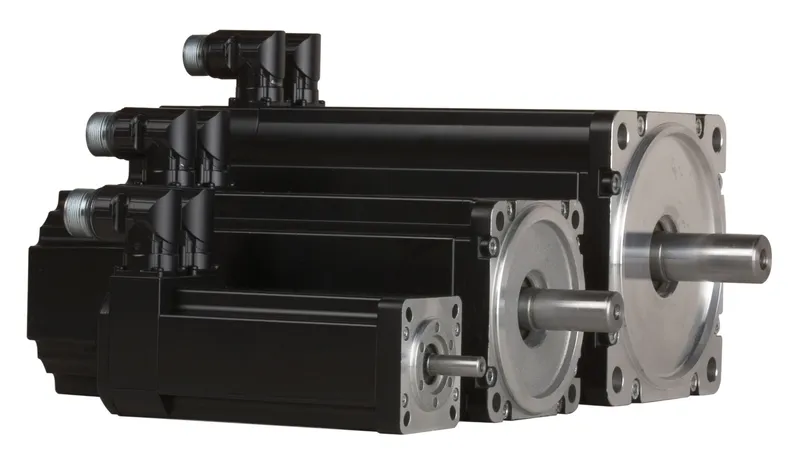

B&R 8LSA5B.ee040ffgg-3

MPN: 8LSA5B.ee040ffgg-3
Category: 8LSA5 (size 5)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8LSA5B.ee040ffgg-3?

S54000 14 00000 x xx 0 S0 xx S 560 R0

Specifications

Motor

Nominal speed n N [rpm]	4000
Number of pole pairs	5
Nominal torque M n [Nm]	14
Nominal power P N [W]	5864
Nominal current I N [A]	11.4
Stall torque M 0 [Nm]	36
Stall current I 0 [A]	29.3
Maximum torque M max [Nm]	131
Maximum current I max [A]	141
Maximum speed n max [rpm]	6000
Torque constant K T [Nm/A]	1.23
Voltage constant K E [V/1000 rpm]	74.35
Stator resistance R 2ph [Ω]	0.15
Stator inductance L 2ph [mH]	2.2
Electrical time constant t el [ms]	14.67
Thermal time constant t therm [min]	51
Moment of inertia J [kgcm 2]	24.7
Weight without brake m [kg]	25

Holding brake

Holding torque of brake M Br [Nm]	60
Mass of brake [kg]	0
Moment of inertia of brake J Br [kgcm 2]	14.7

Recommendations

ACOPOS 8Vxxxx.xx...	1320
ACOPOSmulti 8BVIxxxx...	0330
ACOPOS P3 8EIxxxx...	034X
Cross section for B&R motor cables [mm 2]	4
Connector size	1.5
