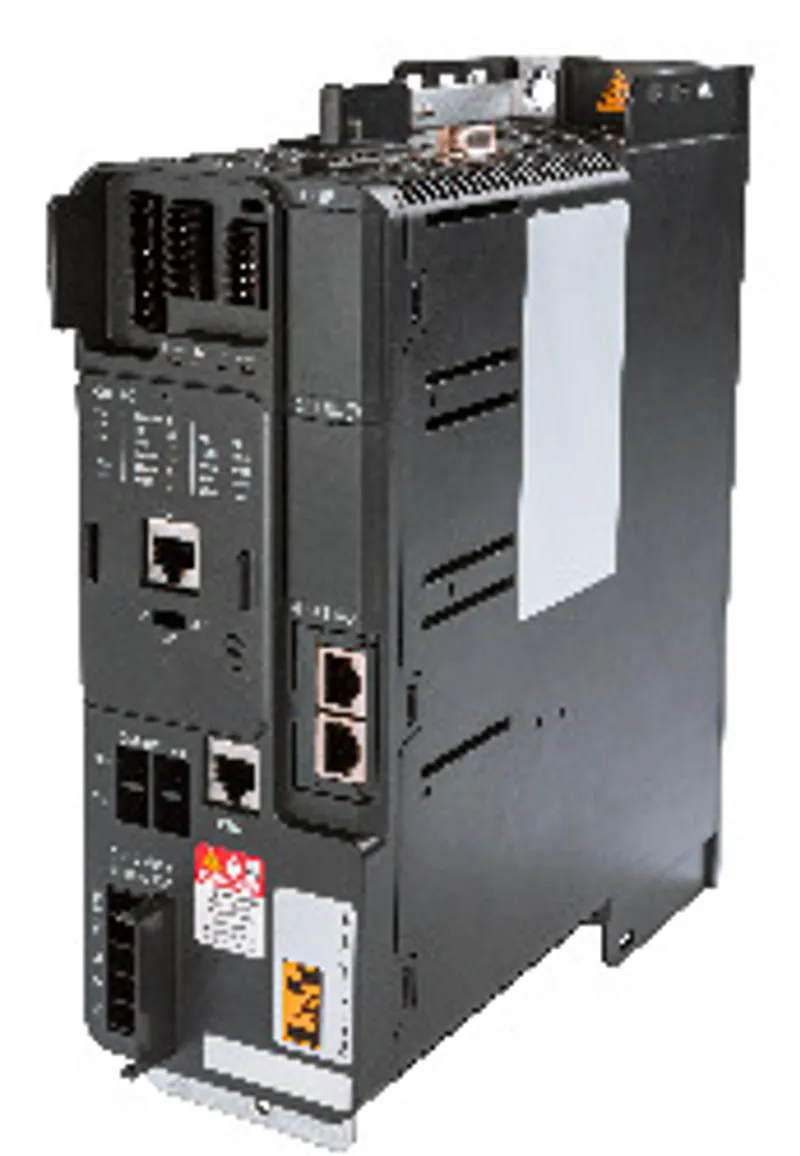

B&R 8I86T400220.00-000
Base device for ACOPOSinverter P86, 3x 380 to 480 V, 2.2 kW
- MPN
- 8I86T400220.00-000
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 8I86T400220.00-000?
Base device for ACOPOSinverter P86, 3x 380 to 480 V, 2.2 kW, EMC filter and brake chopper.Order number - ACOPOSinverter P86:8I86T400220.0P-100: Inverter with POWERLINK communication card
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
Motor power
| Specified on nameplate | 2.2 kW (3 HP) |
Mains connection
| Max. mains current with optional mains choke – At 380 VAC | 5.1 A |
| Max. mains current with optional mains choke – At 480 VAC | 4.1 A |
| Mains current – At 380 VAC | 8.4 A |
| Mains current – At 480 VAC | 6.6 A |
| Power dissipation – External cooling | 90 W |
| Mains input voltage | 3x 380 VAC -15% to 480 VAC +10% |
| Frequency | 50 to 60 Hz ±5% |
| Apparent power (at 480 VAC) | 5.5 kVA |
| Max. assumed short-circuit current (Isc); (short-circuit current at connection point) | 5 kA |
| Inrush current | Max. 8.7 A |
| Integrated EMC filter | Yes |
Line-conducted and radiated emissions
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | - |
| With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system) | 20 m |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network) | - |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network) | C2 level at 4 kHz with 50 m cable |
| With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system) | C3 level at 4 kHz with 100 m cable |
| With add-on filter | 8I0FT025.200-1 |
Motor connection
| Derating of continuous output current depending on ambient temperature – At nominal clock frequency (4 kHz or 2.5 kHz with higher inverter power) | No derating (up to 50°C) |
| Derating of continuous output current depending on ambient temperature – Other clock frequencies | The derating curves are included in the installation instructions, which can be downloaded from www.br-automation.com. |
| Derating of continuous output current depending on installation elevation – Starting at 1000 m above sea level | 1%, per 100 m |
| Clock frequency – Min. | 2 kHz (note: Additional restrictions result from parameter SVL.) |
| Clock frequency – Max. | 16 kHz (note: Additional restrictions result from parameter SVL.) |
| Max. motor cable length – Shielded cable | 100 m |
| Max. motor cable length – Non-shielded cable | 100 m |
| Motor control profiles – Induction motor | Sensorless vector control: ; 1. Voltage controlled with constant torque; → Default mode; 2. Voltage controlled with variable torque; → Energy-saving mode, e.g. for fans and pumps; Vector control with encoder: ; 1. Current-controlled with constant torque; → Default mode; Sensorless slip control: ; 1. With V/f characteristic curve for constant torque; → Default mode; 2. With V/f characteristic curve for constant torque (up to 6 f ranges); → Mode for individual special applications; 3. With V/f characteristic curve for quadratically increasing torque; → Energy-saving mode, e.g. for fans and pumps |
| Motor control profiles – Synchronous motor | Sensorless vector control: ; 1. Voltage controlled with constant torque; → Default mode; Vector control with encoder: ; 1. Current-controlled with constant torque; → Default mode |
| Nominal output current | 5.6 A |
| Max. transient current for 60 s | 8 A |
| Max. transient current for 2 s | 10.1 A |
| Output frequency range | 0.1 to 599 Hz |
| Nominal clock frequency | 4 kHz |
| Main protective functions of inverter | Thermal protection against power stage overheating; Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply |
Brake chopper
| Integrated dynamic brake transistors | Yes |
| Min. resistance value (external) | 52 Ω |
24 VDC power supply
| Input voltage | 24 VDC (min. 20.4 VDC, max. 27 VDC) |
| Current | Max. 0.8 A |
Available internal power supplies
| Output voltage 24 VDC – Max. output current at 24 VDC | Max. 200 mA |
| Output voltage 10 VDC – Max. output current at 10 VDC | Max. 10 mA |
| Output voltage 24 VDC | 24 VDC (min. 20.4 VDC, max. 27 VDC) |
| Output voltage 10 VDC | 10.5 VDC ±5% |
Interfaces
| POWERLINK – Type | Type 3Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section) |
Digital inputs
| Switching threshold – Low | Source: <0.5 V; Sink: >16 V |
| Switching threshold – High | Source: >11 V ; Sink: <10 V |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Electrical isolation – Input - Input | No |
| Quantity | 5 |
| Nominal voltage | 24 VDC (max. 30 VDC) |
| Input circuit | Source or sink |
| Sampling time | 2 ms ±0.5 ms |
| Input impedance | 4.4 kΩ |
Safe input - STO (Safe Torque Off)
| Switching threshold – Low | <5 V |
| Switching threshold – High | >11 V |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Electrical isolation – Input - Input | No |
| Quantity | 2 |
| Nominal voltage | 24 VDC (max. 30 VDC) |
| Input impedance | 2.2 kΩ |
| Input circuit | Source |
Event counters
| Switching threshold – Low | <0.6 V |
| Switching threshold – High | >2.5 V |
| Quantity | 1 |
| Nominal voltage | 24 VDC (max. 30 VDC) |
| Input frequency | 0 to 30 kHz |
| Input circuit | Source |
| Sampling time | 5 ms ±1 ms |
Analog inputs
| Electrical isolation – Input - Input | No |
| Electrical isolation – Input - ACOPOSinverter | Yes |
| Input – Voltage | AI1: 0 to 10 VDC; AI2: -10 to 10 VDC |
| Input – Current | AI1: 0 to 20 mA |
| Input impedance – Voltage | AI1: 31.5 kΩ; AI2: 20 kΩ |
| Input impedance – Current | 250 Ω |
| Quantity | 2 |
| Nonlinearity | ±0.15% |
| Basic accuracy | ±0.6% with temperature fluctuation of 60°C |
| Resolution | 12-bit |
| Sampling time | 1 ms ±1 ms |
Digital outputs
| Quantity | 2 |
| Nominal voltage | 24 VDC -15%/+20% |
| Max. voltage | 30 VDC |
| Output circuit | Source or sink |
| Sampling time | 2 ms ±0.5 ms |
| Max. current | 100 mA |
Relay outputs
| Execution – Relay 1 | 1 changeover contact |
| Execution – Relay 2 | 1 normally open contact |
| Electrical isolation – Output - ACOPOSinverter | Yes |
| Electrical isolation – Output - Output | No |
| Quantity | 2 |
| Nominal voltage | 30 VDC / 250 VAC |
| Switching current range | Min. switching current: 5 mA at 24 VDC; Max. switching current:; R1: At cos φ = 1: Max. 3 A / At cos φ = 0.4: Max. 2 A; R2: At cos φ = 1: Max. 5 A / At cos φ = 0.4: Max. 2 A |
| Response time (max.) | 5 ms ±0.5 ms |
Analog outputs
| Electrical isolation – Output - ACOPOSinverter | Yes |
| Electrical isolation – Output - Output | No |
| Max. load impedance – Voltage | 470 Ω |
| Max. load impedance – Current | 500 Ω |
| Quantity | 1 |
| Output | 0 to 10 VDC or 0 to 20 mA |
| Nonlinearity | ±0.2% |
| Basic accuracy | ±1% with temperature fluctuation of 60°C |
| Sampling time | 5 ms ±1 ms |
| Resolution | 10-bit |
Electrical properties
| Energy efficiency (IE classification) – Power dissipation relative to continuous apparent power | IE2 (10, 25): 1.1% (3x 380 VAC), 0.9% (3x 480 VAC); IE2 (50, 25): 1% (3x 380 VAC), 0.8% (3x 480 VAC); IE2 (10, 50): 1.3% (3x 380 VAC), 1.1% (3x 480 VAC); IE2 (50, 50): 1.3% (3x 380 VAC), 1% (3x 480 VAC); IE2 (90, 50): 1.4% (3x 380 VAC), 1.2% (3x 480 VAC); IE2 (10, 100): 1.9% (3x 380 VAC), 1.5% (3x 480 VAC); IE2 (50, 100): 1.8% (3x 380 VAC), 1.5% (3x 480 VAC); IE2 (90, 100): 2.2% (3x 380 VAC), 1.8% (3x 480 VAC) |
| Energy efficiency (IE classification) – Nominal losses in standby mode | 15 W (3x 380 VAC), 16 W (3x 480 VAC) |
Operating conditions
| Degree of protection per EN 61800-5-1 | IP20 |
| Degree of protection per EN 60529 | IP20 |
| Max. relative humidity per EN/IEC 60721-3-3 class 3K3 | 5 to 95%, non-condensing |
| Maximum installation elevation | ≤1000 m without derating; 1000 to 3000 m with Derating |
| Max. pollution degree per IEC/EN 61800-5-1 | 2 (non-conductive pollution) |
| Ambient conditions per IEC 60721-3-3 | Class 3C3 and 3S3 |
| Operating position | Vertical mounting orientation ±10° |
Ambient conditions
| Temperature – Operation | -15 to 50°C without derating; 50 to 60°C with derating |
| Temperature – Storage | -40 to 70°C |
| Max. vibration resistance | 1 g n 9 to 200 Hz EN/IEC 60721-3-3 class 3M3; 1.5 mm peak to peak 2 to 19 Hz EN/IEC 60721-3-3 class 3M3 |
| Max. shock resistance | 15 g n (duration = 11 ms) per EN/IEC 60721-3-3 class 3M3 |
Mechanical properties
| Dimensions – Width | 85 mm |
| Dimensions – Height | 270 mm |
| Dimensions – Depth | 232.5 mm |
| Weight | 1.8 kg |
No matching specifications
Accessories
Optional accessories (18)
| 8I0XD304.310-1 | Cable and adapters — RJ45 cable, 10 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XD304.305-1 | Cable and adapters — RJ45 cable, 5 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XD304.303-1 | Cable and adapters — RJ45 cable, 3 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XD304.301-1 | Cable and adapters — RJ45 cable, 1 m, for remote use of the display for the ACOPOSinverter. |
| 8I0XC003.400-1 | Cable and adapters — DC bus cable, 0.18 m, 5 pcs., for ACOPOSinverter |
| 8I0XC001.003-1 | Cable and adapters — USB adapter cable, USB to Modbus, for ACOPOSinverter. |
| 8I0XS086.401-1 | Connector (spare part) — ACOPOSinverter P86 connector set size 1, power output class: 0.75 to 4 kW (1 to 5 HP) |
| 8I0XF086.401-1 | Fans (spare part) — ACOPOSinverter P86 fan kit for size 1, power output class: 0.75 to 4 kW (1 to 5 HP) |
| 8I0IFENC.403-1 | Interface modules — ACOPOSinverter P86 encoder interface (HTL), encoder type / signal: AB (push-pull) supply voltages: 12, 15, 24 VDC |
| 8I0IFENC.402-1 | Interface modules — ACOPOSinverter P86 encoder interface, encoder type / signal: Resolver |
| 8I0IFENC.401-1 | Interface modules — ACOPOSinverter P86 encoder interface (analog), encoder type / signal: SinCos supply voltages: 5, 12, 24 VDC encoder type / signal: HIPERFAC… |
| 8I0IFENC.400-1 | Interface modules — ACOPOSinverter P86 encoder interface (digital), encoder type / signal: AB, SSI supply voltages: 5, 12, 24 VDC encoder type / signal: ENDAT… |
| 8I0FT025.200-1 | Optional EMC filters — ACOPOSinverter additional EMC input filter 3-phase 25 A, supply voltage: 380 to 480 V, 50/60 Hz |
| 8I0XE086.401-1 | Optional EMC kit — EMC installation kit for P86 size 1, power output class: 0.75 to 4 kW (1 to 50 HP) |
| 8I0BR100.002-1 | Optional braking resistors — Braking resistor ohmic value: 100 Ω continuous braking power: 0.26 kW degree of protection (IP): IP20 |
| 8I0CT010.000-1 | Optional line chokes — Mains choke 3-phase, 10 A, 50/60 Hz for ACOPOSinverter |
| 8I0XD086.400-1 | Plain text display — Plain text display for ACOPOSinverter P86, backlight, navigation key, IP43 protection |
| 8I0FM086.400-1 | Plain text display — Female-to-female installation kit for ACOPOSinverter plain text display, IP43 protection |
