B&R 8I74S200018.00-000

ACOPOSinverter P74new, 1x 200-240 V, 0.18 kW, integrated EMC filter and brake chopper

MPN
8I74S200018.00-000
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 8I74S200018.00-000?

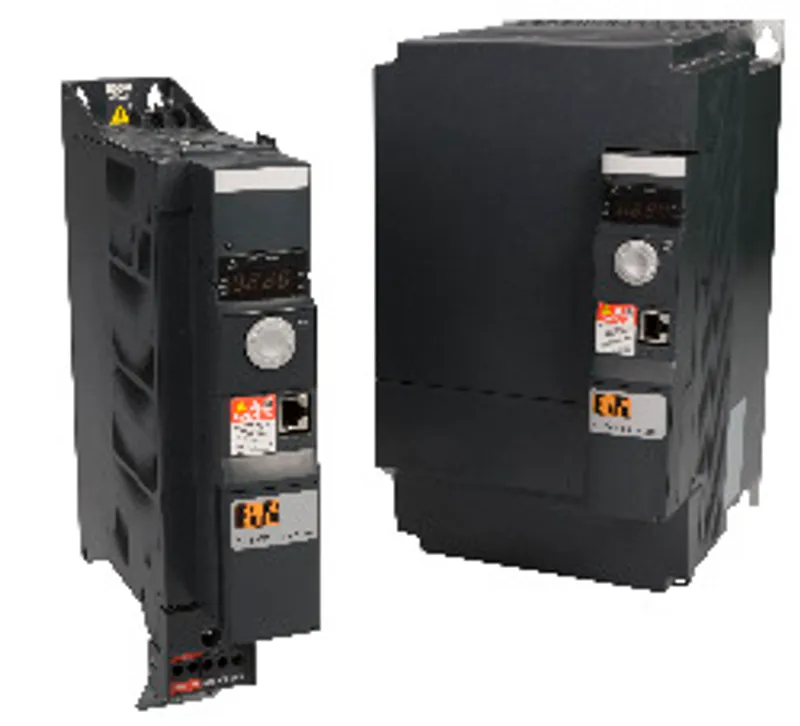

ACOPOSinverter P74new, 1x 200-240 V, 0.18 kW, integrated EMC filter and brake chopper, shield plate included in delivery.

Specifications

General information

Certifications – CEYes
Certifications – ULUL E225616; Power conversion equipment
Certifications – CSACSA E272421; Industrial control equipment

Motor power

Specified on nameplate0.18 kW (0.25 HP)

Mains connection

Mains current – At 200 VAC3.4 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).)
Mains current – At 240 VAC2.8 A (note: Typical value for 4-pin motor and a max. clock frequency of 4 kHz, without mains choke for the max. assumed short circuit current (lsc).)
Mains input voltage1x 200 VAC -15% to 240 VAC +10%
Frequency50 to 60 Hz ±5%
Apparent power (at 240 VAC)0.7 kVA
Max. assumed short-circuit current (Isc); (short-circuit current at connection point)1 kA (note: With mains choke max. Isc 22 kA for 200/240 V.)
Inrush currentMax. 9.6 A (note: Peak current when switching on for maximum voltage (240 V +10% or 500 V +10%))
Power dissipation at nominal load and nominal clock frequency25 W
Integrated EMC filterYes (note: Inverter is provided with an integrated Category C2 EMC filter. This filter can be switched off.)

Line-conducted and radiated emissions

With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network)-
With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network)C2 level of 2 to 4 kHz with 10 m cable; C2 level of 4 to 12 kHz with 5 m cable
With integrated filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system)10 m
With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C1 environment 1 (public power network)C1 level of 2 to 16 kHz with 20 m cable
With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C2 environment 1 (public power network)C2 level of 2 to 6 kHz with 50 m cable; C2 level at 2 kHz with 100 m cable
With add-on filter – Motor cable length per IEC/EN 61800-3 ; Cat. C3 environment 2 (industrial power system)50 m
With add-on filter8I0FS009.200-2

Motor connection

Derating of continuous output current depending on ambient temperature – At nominal clock frequency (4 kHz)No derating (up to 50°C)
Derating of continuous output current depending on ambient temperature – Other clock frequenciesThe derating curves are included in the installation instructions, which can be downloaded from www.br-automation.com.
Derating of continuous output current depending on installation elevation – Starting at 1000 m above sea level1%, per 100 m
Clock frequency – Min.2 kHz
Clock frequency – Max.16 kHz
Braking torque – With braking resistorUp to 170% of the nominal motor torque
Max. motor cable length – Shielded cable50 m
Max. motor cable length – Non-shielded cable100 m
Motor control profiles – Induction motorSensorless vector control: ; 1. With V/f characteristic curve for constant torque; → Default profile; 2. With V/f characteristic curve for quadratically increasing torque; → Energy-saving profile, e.g. for fans and pumps; Sensorless slip control: ; 1. With V/f characteristic curve for constant torque; → Default profile; 2. With V/f characteristic curve for constant torque (6 f ranges); → Profile for individual special applications; 3. With V/f characteristic curve for quadratically increasing torque; → Energy-saving profile, e.g. for fans and pumps
Motor control profiles – Synchronous motorSensorless vector control: ; 1. With V/f characteristic curve for constant torque; → Default profile
Nominal output current1.5 A (note: These values apply at a nominal clock frequency of 4 kHz during continuous operation. The clock frequency can be set from 2 to 16 kHz. Above 4 kHz, reduce the nominal drive current. The nominal motor current is not permitted to exceed this value.)
Max. transient current for 60 s2.3 A
Max. transient current for 2 s2.5 A
Output frequency range0.1 to 599 Hz
Nominal clock frequency4 kHz
Main protective functions of inverterThermal protection against power stage overheating; Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply

Brake chopper

Integrated dynamic brake transistorsYes
Min. resistance value (external)40 Ω

24 VDC power supply

Input voltage24 VDC (-15%/+20%)
CurrentMax. 1.1 A

Available internal power supplies

Output voltage 24 VDC – Max. output current at 24 VDC100 mA
Output voltage 10 VDC – Max. output current at 10 VDC10 mA
Output voltage 24 VDC24 VDC (-15%/+20%)
Output voltage 10 VDC10 VDC (-0%/+10%)

Interfaces

POWERLINK – TypeType 2Communication / POWERLINK / General information / Hardware - CN" in Automation Help."> (note: For additional information, see section)

Digital inputs

Input circuit – Current consumption7 mA
Electrical isolation – Input - ACOPOSinverterYes
Electrical isolation – Input - InputNo
Digital input 5 – Max. input frequency20 kHz
Quantity6 (note: 1 logic input can be programmed as a 20 kbps pulse input. 1 logic input is configurable as an input for a PTC sensor using a switch (SW2). Trigger resistance 3 kΩ, reset value 1.8 kΩ, short-circuit proof <50 Ω)
Nominal voltage24 VDC (max. 30 V)
Input circuitSource or sink
Sampling time8 ms ±0.7 ms
Input impedance3.5 kΩ

Safe input - STO (Safe Torque Off)

Input impedance – Current consumption16 mA
Switching threshold – Low<2 V
Switching threshold – High>17 V
Electrical isolation – Input - ACOPOSinverterYes
Electrical isolation – Input - InputNo
Quantity1
Nominal voltage24 VDC
Input impedance1.5 kΩ
Input circuitSink
Sampling time4 ms

Analog inputs

Electrical isolation – Input - InputNo
Electrical isolation – Input - ACOPOSinverterYes
Input – Voltage0 to 10 V, ±10 V
Input – Current0 to 20 mA (or 4 to 20 mA)
Input impedance – Voltage30 kΩ
Input impedance – Current250 Ω
Quantity3
Resolution10-bit
Sampling time2 ms

Digital outputs

Quantity1
Nominal voltage24 VDC
Max. voltage30 VDC
Output circuitSource or sink
Sampling time2 ms
Max. current100 mA

Relay outputs

Variant – Relay 11 changeover contact
Variant – Relay 21 normally open contact
Electrical isolation – Output - ACOPOSinverterYes
Electrical isolation – Output - OutputNo
Quantity2
Nominal voltage30 VDC / 250 VAC
Switching capacityR1, with resistive load (cos phi = 1): 3 A at 250 VAC, ; R1, with resistive load (cos phi = 1): 4 A at 30 VDC, ; R1, R2, with inductive load (cos = 0.4 and L/R = 7 ms): 2 A at 250 VAC, ; R1, R2, with inductive load (cos = 0.4 and L/R = 7 ms): 2 A at 30 VDC, ; R2 with resistive load (cos phi = 1): 5 A at 250 VAC, ; R2 with resistive load (cos phi = 1): 5 A at 30 VDC
Response time (max.)2 ms

Analog outputs

Electrical isolation – Output - ACOPOSinverterYes
Electrical isolation – Output - OutputNo
Max. load impedance – Voltage470 Ω
Max. load impedance – Current800 Ω
Quantity1
Output0 to 10 V or 0 to 20 mA
Update time2 ms
Resolution10-bit

Operating conditions

Degree of protection per EN 60529IP20
Relative humidity per IEC 60068-2-35 to 95%. non-condensing; No dripping water
Maximum installation elevationUp to 2000 m (note: Over 2000 m, load reduced by 1% per 100 m.)
Max. pollution degree per IEC/EN 61800-5-12 (non-conductive pollution)
Ambient conditions per IEC 60721-3-3Class 3C3 and 3S3
Operating positionVertical mounting orientation ±10%

Ambient conditions

Temperature – Operation-10 to 50°C without derating; 50 to 60°C with derating
Temperature – Storage-25 to 70°C
Max. vibration resistance1 g n 13 to 200 Hz EN/IEC 60068-2-6; 1.5 mm peak to peak 3 to 13 Hz EN/IEC 60068-2-6

Mechanical properties

Dimensions – Width45 mm (note: With shield plate)
Dimensions – Height317 mm (note: With shield plate)
Dimensions – Depth245 mm (note: With shield plate)
Weight1.59 kg

Accessories

Optional accessories (3)
8I0XF074.010-1Fans (spare part) — ACPi P76, P74/P74new fan 1-ph. 200…240 VAC: Power output class: 0.18 - 0.75 kW 3-ph. 380…500 VAC: Power output class: 0.37 - 1.5 kW
8I0FS009.200-2Optional EMC filters — 9 A EMC filter for ACOPOSinverter P76 and P74new (1-phase 200-240 V, 0.18-0.75 kW).
8I0CS004.000-1Optional line chokes — Mains choke 1-phase 4 A Can be used for ACOPOSinverter P66, P74new, P76 1x 200 to 240 VAC: 0.18 to 0.37 kW

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

CAD & dimension drawings

Certificates (1)

8I74S200018.00-000: frequently asked questions

When can 8I74S200018.00-000 be shipped?

8I74S200018.00-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8I74S200018.00-000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8I74S200018.00-000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I74S200018.00-000, subject to availability and destination.
