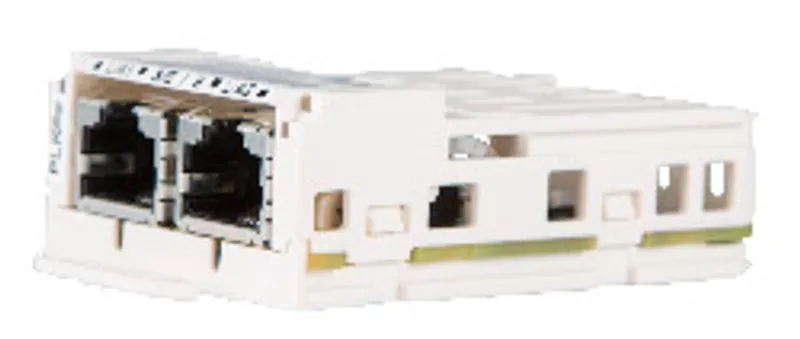

What is the B&R 8I0IF108.400-1?
2x POWERLINK interface, POWERLINK V2, interface module for ACOPOSinverter P74 and P74new.
Specifications
General information
| LEDs – Quantity | 4 |
| Diagnostics – Module status | Yes, using LED status indicator |
| Diagnostics – Network status | Yes, using LED status indicator |
| Diagnostics – Data transfer | Yes, using LED status indicator (port 1 and port 2) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | UL E225616; Power conversion equipment |
| Certifications – KC | Yes |
| B&R ID code | 0xC29B |
Interfaces
| POWERLINK – Quantity | 2 |
| POWERLINK – Variant | 2x shielded RJ45 port (hub) |
| POWERLINK – Transfer rate | 100 Mbit/s |
| POWERLINK – Transfer | 10/100BASE-TX |
| POWERLINK – Line length | Max. 100 m between two stations (segment length) |
Mechanical properties
| Dimensions – Width | 41 mm |
| Dimensions – Length | 74 mm |
| Dimensions – Height | 21 mm |
| Weight | 300 g |
General information
| Module type | Communication module |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8I0IF108.400-1: frequently asked questions
When can 8I0IF108.400-1 be shipped?
8I0IF108.400-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8I0IF108.400-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8I0IF108.400-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I0IF108.400-1, subject to availability and destination.
