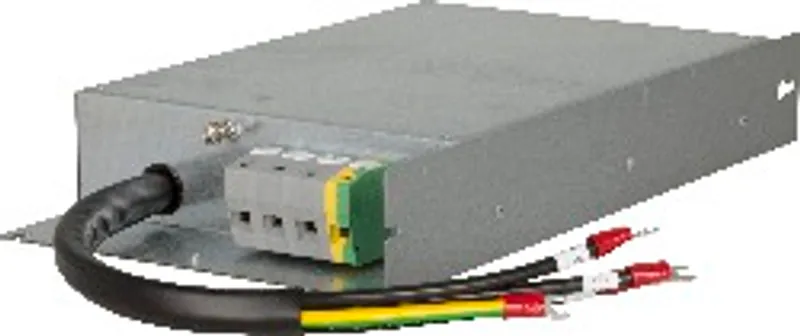

B&R 8I0FT046.300-1
46 A EMC filter for ACOPOSinverter P84
- MPN
- 8I0FT046.300-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8I0FT046.300-1?
46 A EMC filter for ACOPOSinverter P84 (3-phase 200-240 V, 7.5 kW and 380-480 V, 11 kW).
Specifications
General information
| Certifications – CE | Yes |
| Certifications – KC | Yes |
Mains connection
| Max. fault current – At 200 to 240 VAC | 10 mA |
| Max. fault current – At 380 to 480 VAC | 14 mA |
| Power dissipation – At 200 to 240 VAC | 19 W |
| Power dissipation – At 380 to 480 VAC | 13 W |
| Max. nominal voltage | 3x 480 VAC +10% |
| Nominal filter current | 46 A |
Operating conditions
| Installation elevation above sea level | 0 to 1000 m |
| Degree of protection per EN 60529 | Upper part: IP21 and IP41 |
| Max. relative humidity per IEC 60068-2-3 | 93%, non-condensing ; No dripping water |
| Ambient temperature | -10 to 50°C |
| Maximum installation elevation | 3000 m (note: From 1000 to 3000 m, current reduced by 1% per 100 m, limited to 2000 m for a grounded phase distribution network.) |
Ambient conditions
| Temperature – Storage | -40 to 65°C |
Mechanical properties
| Weight | 7.0 kg |
| Installation | Below or next to the inverter |
General information
| Conformity to standard | EN 133200 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
8I0FT046.300-1: frequently asked questions
When can 8I0FT046.300-1 be shipped?
8I0FT046.300-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8I0FT046.300-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8I0FT046.300-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8I0FT046.300-1, subject to availability and destination.
