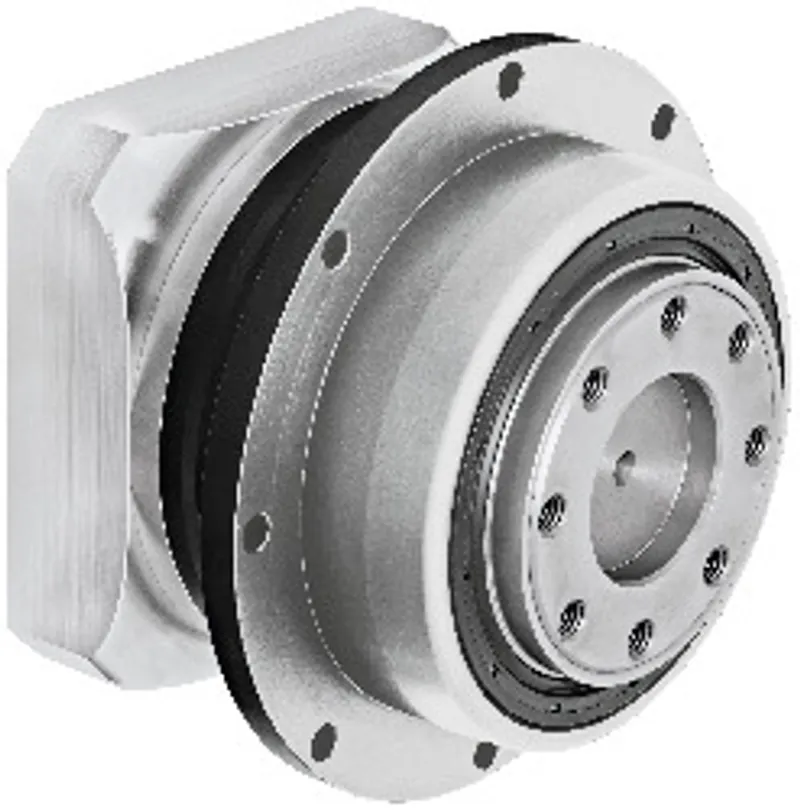

B&R 8GF70-110hh004klmm
Flange PG, i = 004, 1-stage, IP65
- MPN
- 8GF70-110hh004klmm
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8GF70-110hh004klmm?
Flange PG, i = 004, 1-stage, IP65
Specifications
Gearbox
| Number of gear stages | 1 |
| Gear ratio i | 4 |
| Nominal output torque T 2N [Nm] | 180 |
| Max. output torque T 2max [Nm] | 288 |
| Emergency switch-off torque T 2stop [Nm] | 650 |
| Idle torque [Nm] at 20°C and 3000 rpm | 3.8 |
| Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1 | 1800 |
| Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1 | 1700 |
| Max. drive speed n 1max [rpm] | 8500 |
| Max. backlash J t [arcmin] | 3 |
| Reduced backlash J t [arcmin] less than | 1 |
| Torsional rigidity C t21 [Nm/arcmin] | 90 |
| Tilt tension C 2K [Nm/arcmin] | 590 |
| Max. breakdown torque M 2Kmax [Nm] | 534 |
| Max. radial force Fr max [N] for 30,000 h | 4800 |
| Max. radial force Fr max [N] for 20,000 h | 5500 |
| Max. axial force Fa max [N] for 30,000 h | 8400 |
| Max. axial force Fa max [N] for 20,000 h | 9500 |
| Operating noise L PA [dB(A)] | 63 |
| Efficiency at full load ŋ [%] | 98 |
| Min. operating temperature B Tempmin [°C] | -25 |
| Max. operating temperature B Tempmax [°C] | 90 |
| Mounting orientation | Any |
| Degree of protection | IP 65 |
| Weight m [kg] | 6.5 |
| Moment of inertia J 1 [kgcm 2] | 1.811 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8GF70-110hh004klmm: frequently asked questions
When can 8GF70-110hh004klmm be shipped?
8GF70-110hh004klmm is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8GF70-110hh004klmm in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8GF70-110hh004klmm and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8GF70-110hh004klmm, subject to availability and destination.
