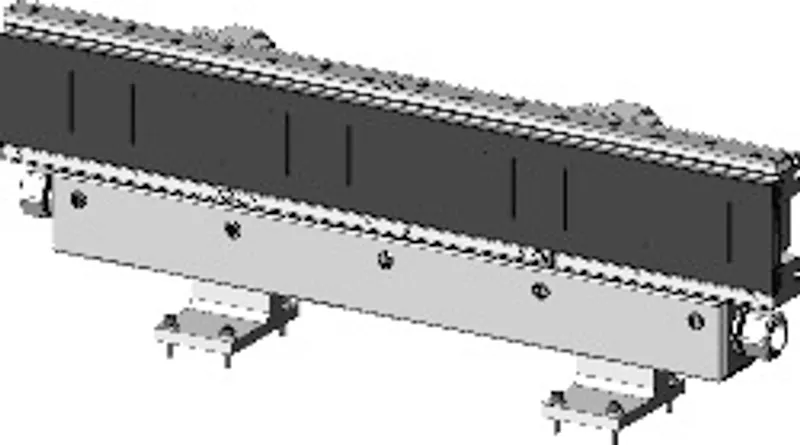

B&R 8FZAM1.0A.A000-1
SuperTrak straight segment, length 1000 mm
- MPN
- 8FZAM1.0A.A000-1
- Category
- Segments
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8FZAM1.0A.A000-1?
SuperTrak straight segment, length 1000 mm, horizontal Includes: Quantity 1: 1000 mm linear track section Quantity 1: Front-mounted electronics (FME) Quantity 2: Track stand with tool plate holder and dual function Quantity 2: Track-leveling devices
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – TÜV SÜD | Certified per UL 508 |
24 VDC power supply
| Current consumption | 250 mA |
28 VDC output
| Peak current | 100 A |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 25°C |
| Temperature – Maximum | 40°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
Mechanical properties
| Dimensions – Width | 1000 mm |
| Dimensions – Height | 356.4 mm |
| Dimensions – Depth | 62 mm |
| Material | Anodized aluminum, stainless steel, polyamide (PA), polycarbonate (PC), epoxy resin |
| Acceleration force of motor | 120 N (Shuttle, 2 magnets); 160 N (Shuttle, 3 magnets) |
| Weight | 51 kg |
Accessories
Optional accessories (1)
| 8FZAM0.00.A000-1 | Accessories — SuperTrak shuttle IR reader with mounting bracket Fully integrated IR (infrared) reader for the shuttle identification system Includes: - Q… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8FZAM1.0A.A000-1: frequently asked questions
When can 8FZAM1.0A.A000-1 be shipped?
8FZAM1.0A.A000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8FZAM1.0A.A000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8FZAM1.0A.A000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8FZAM1.0A.A000-1, subject to availability and destination.
