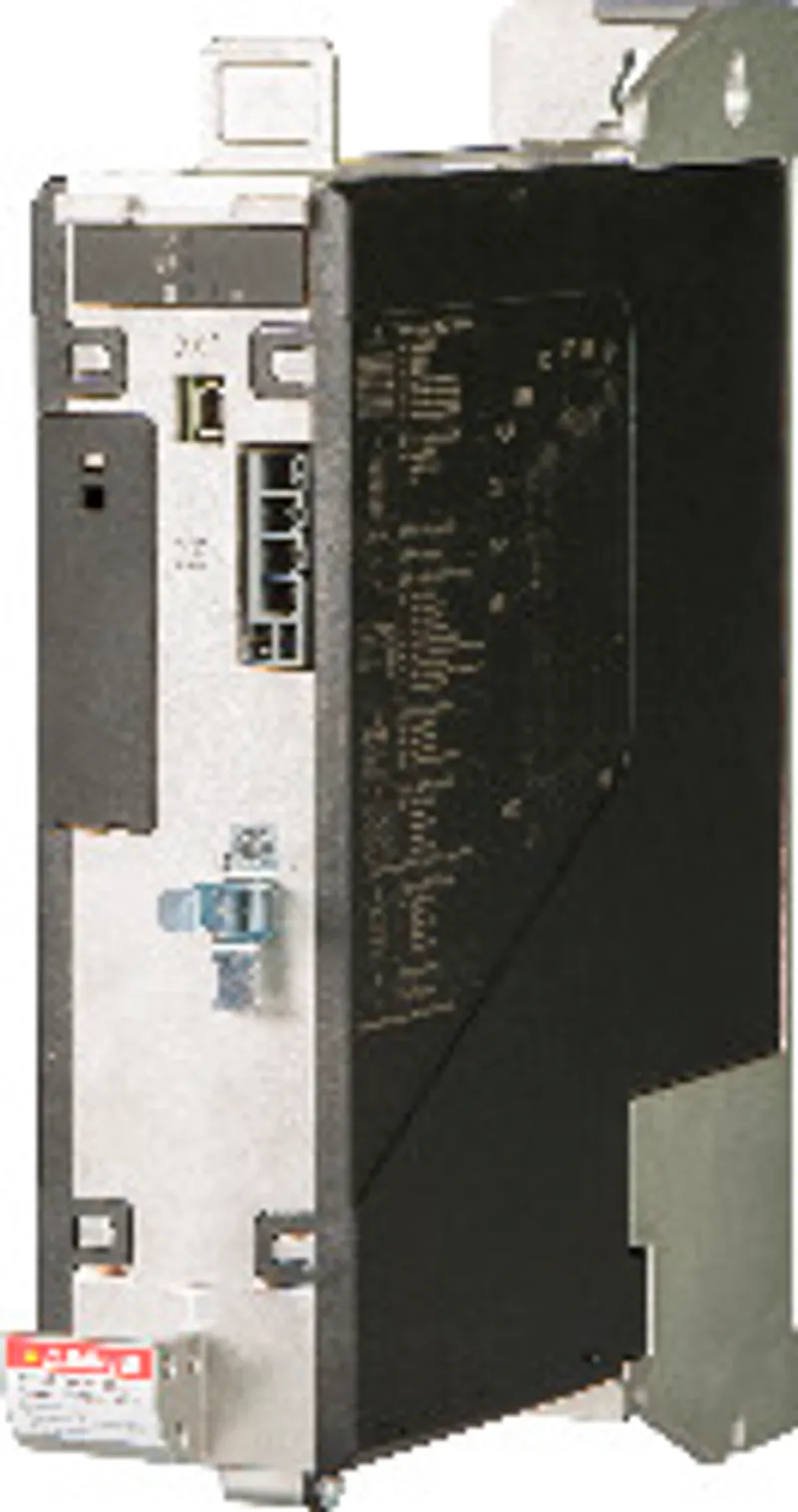

B&R 8EI2X2HWS10.0600-1
ACOPOS P3 servo drive, 1 digital multi-standard encoder…
- MPN
- 8EI2X2HWS10.0600-1
- Category
- Wall mounting
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8EI2X2HWS10.0600-1?
ACOPOS P3 servo drive, 1 digital multi-standard encoder interface per axis, 3x 200-480 VAC, 2.2 A, 1 axis, wall mounting, 1-row connector set, cover, integrated braking resistor
Specifications
General information
| Support – Dynamic node allocation (DNA) | Yes |
| Slots for plug-in modules | 1 |
Mains connection
| Network configurations | TN-S, TN-C-S with grounded neutral |
| Mains input voltage | 3x 200 VAC to 480 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Installed load | Max. 2.5 kVA |
| Inrush current | Max. 45 A |
| Switch-on interval | Typ. 60 s |
| Integrated line filter per EN 61800-3, category C3 | No (note: A line filter must be connected. CE compliance can only be ensured by connecting an upstream B&R line filter (e.g. 8B0F0160H000.A00-1). In extreme cases, using line filters from 3rd-party manufacturers can result in irreparable damage to the ACOPOS P3 8EI servo drive.) |
| Power dissipation at device nominal power without braking resistor | [(40 + 6.9 * P AVG [kW] + 7.5 * I AX1 [A] + 0.25 * I BR1 2 [A] + P VSLOT ) * 1.1] [W] (note: P AVG ... Average continuous power of the module I AX1 ... RMS value of the current on axis 1 I BR1 ... Nominal current of the motor holding brake for axis 1 P VSLOT ... Power dissipation of the 8EAC plug-in module) |
DC bus connection
| DC bus capacitance | 470 µF |
24 VDC power supply
| Input voltage | 24 VDC ±25% |
| Input capacitance | 4312 µF |
| Current consumption | 0.9 A + Current for motor holding brake (note: Current consumption depends on the respective configuration of the ACOPOS P3 8EI servo drive.) |
Motor connection
| Reduction of continuous current depending on switching frequency – Switching frequency 5 kHz | No reduction (note: The temperature specifications refer to the ambient temperature.) |
| Reduction of continuous current depending on switching frequency – Switching frequency 10 kHz | No reduction (note: The temperature specifications refer to the ambient temperature.) |
| Reduction of continuous current depending on switching frequency – Switching frequency 20 kHz | No reduction (note: The temperature specifications refer to the ambient temperature.) |
| Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | 0.22 A eff per 1000 m |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes |
| Variant – U, V, W, PE | Connector |
| Variant – Shield connection | Yes |
| Terminal connection cross section – With wire end sleeve | 1.5 to 6 mm² |
| Terminal connection cross section – UL/C-UL-US | 24 to 8 AWG |
| Terminal connection cross section – CSA | 24 to 8 AWG |
| Max. motor line length depending on switching frequency – Switching frequency 5 kHz | 75 m (note: The sum of the cable lengths of all motor cables connected to this module is not permitted to exceed this value.) |
| Max. motor line length depending on switching frequency – Switching frequency 10 kHz | 37.5 m (note: The sum of the cable lengths of all motor cables connected to this module is not permitted to exceed this value.) |
| Max. motor line length depending on switching frequency – Switching frequency 20 kHz | 18.75 m (note: The sum of the cable lengths of all motor cables connected to this module is not permitted to exceed this value.) |
| Quantity | 1 |
| Continuous power per motor connection | 1 kW (note: Valid under the following conditions: 560 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| Continuous current per motor connection | 2.2 A eff (note: Valid under the following conditions: 560 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| Peak current per motor connection | 6 A eff |
| Peak power output | 2.5 kW |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies | 5 / 10 / 20 kHz (note: B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization.) |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 | Limit value curve A |
| Max. output frequency | 598 HzPower unit: Limit speed exceeded")."> |
Motor holding brake connection
| Protective measures – Overload and short-circuit protection | Yes |
| Protective measures – Open-circuit monitoring | Yes |
| Protective measures – Undervoltage monitoring | Yes |
| Quantity | 1 |
| Output voltage | Depends on the input voltage on connector X2 (note: During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the specified input voltage and wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used.) |
| Continuous current per connection | 1.3 A |
| Max. internal resistance | 0.25 Ω |
| Extinction potential | Approx. 30 V |
| Max. extinction energy per switching operation | 1.5 Ws |
| Max. switching frequency | 0.5 Hz |
| Response threshold for open-circuit monitoring | Approx. 30 mA |
Braking resistor
| Peak power int./ext. | 7 kW / 25 kW |
| Continuous power int./ext. | 100 W / 2 kW |
| Minimum braking resistance (ext.) | 25 Ω |
Enable inputs
| Electrical isolation – Input - ACOPOS P3 | Yes |
| Electrical isolation – Input - Input | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Switching delay at nominal input voltage – Enable 1 → 0, PWM off | 2 ms |
| Switching delay at nominal input voltage – Enable 0 → 1, ready for PWM | 0.3 ms |
| Quantity | 2 |
| Circuit | Sink |
| Input current at nominal voltage | Approx. 9 mA |
| Modulation compared to ground potential | Max. ±38 V |
| OSSD signal connections | 0.5 ms (note: OSSD (output signal switching device) signals are used to monitor signal lines for short circuits and cross faults.) |
Encoder interfaces
| Electrical isolation – Encoder - ACOPOS P3 | No |
| Encoder power supply – Short-circuit proof | Yes |
| Encoder power supply – Overload-proof | Yes |
| Encoder power supply – Output voltage | Typ. 11.4 V |
| Encoder power supply – Load capacity | 300 mA |
| Synchronous serial interface – Signal transmission | RS485 |
| Synchronous serial interface – Data transfer rate | 6.25 Mbit/s |
| Quantity | 1 |
| Type | EnDat 2.2 |
| Connections | 8-pin female Mini I/O connector |
| Status indicators | None (note: The direction of rotation of the encoder can be displayed on the 8EAD0000.000-1 display module.) |
| Encoder monitoring | No |
| Max. encoder cable length | 100 m ; Depends on the cross section of the power supply wires in the encoder cable |
| Max. power consumption per encoder interface | P ENCODER [W] = U 24V [V] * (I ENCODER [A] * 0.7) + 0.5 W (note: I ENCODER ... Current consumption of the encoder U 24V ... Input voltage on the +24 VDC input of the module) |
Trigger inputs
| Electrical isolation – Input - ACOPOS P3 | Yes |
| Electrical isolation – Input - Input | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Switching delay – Rising edge | <2 µs |
| Switching delay – Falling edge | <1 µs |
| Quantity | 2 |
| Circuit | Sink |
| Input current at nominal voltage | Approx. 4 mA |
| Modulation compared to ground potential | Max. ±38 V |
Temperature sensor connection
| Quantity | 1 |
| Resistance range | 500 Ω to 5 kΩ |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Standing horizontally | In preparation |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85%, non-condensing |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | 95% at 40°C |
Mechanical properties
| Dimensions – Wall mounting | 258.5 mm (with 8EXA front cover: 261 mm) |
| Dimensions – Width | 66 mm |
| Dimensions – Height | 290 mm |
| Weight | 3.2 kg |
