B&R 8ECM0045.1111C-0

ACOPOS P3 motor cable, length 45 m

MPN: 8ECM0045.1111C-0
Category: 1.5 mm² motor cables

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 8ECM0045.1111C-0?

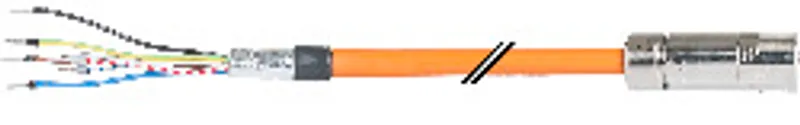

ACOPOS P3 motor cable, length 45 m, 4x 1.5 mm² + 2x 2x 0.75 mm², 8-pin female speedtec motor connector size 1, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Cable cross section	4x 1.5 mm² + 2x 2x 0.75 mm²
Durability	Oil resistance per HD 22.10 appendix A DIN EN 60811-404 (note: Values refer to the raw cable being used.)
Certification	E170315 cRUus AWM STYLE 21223 AWM I/II A/B 80°C 1000 V FT1 (note: Values refer to the raw cable being used.)

Cable construction

Outer jacket – Material	TPU
Outer jacket – Color	Orange, similar to RAL 2003 flat

Connector

Type	8-pin female speedtec motor connector
Mating cycles	<500
Contacts	8 (4 power and 4 signal contacts)
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	20 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	17.8 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	20.9 A
Operating voltage	Max. 1000 VAC (UL)

Ambient conditions

Temperature – Moving	-20°C to +80°C
Temperature – Static	-20°C to +90°C

Mechanical properties

Dimensions – Length	45 m
Dimensions – Diameter	12.2 mm ±0.3 mm
Bend radius – Single bend	>38 mm
Bend radius – Moving	>94 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≥5,000,000 (note: At an ambient temperature from -20°C to +60°C.)
Drag chain data – Speed	Max. 300 m/min
Weight	6.3 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8ECM0045.1111C-0PDF · 169 KB · 1.0 (09/24/2024) - EN
