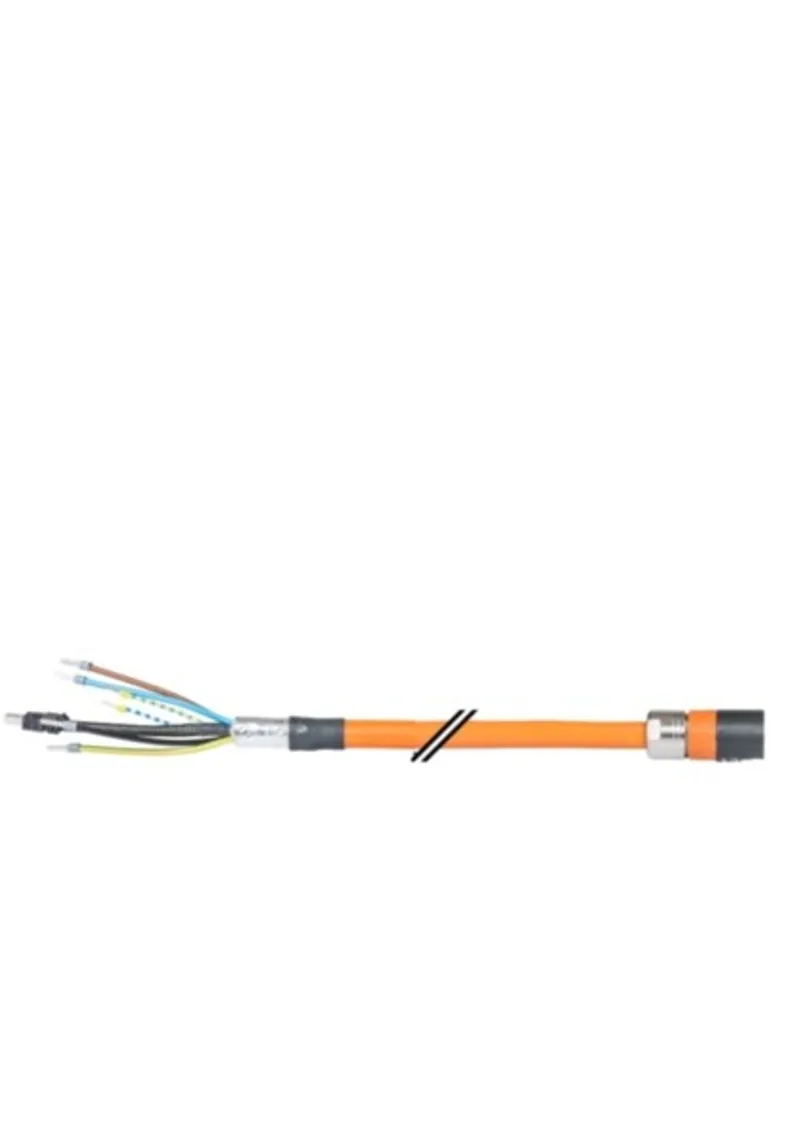

B&R 8ECH0010.1A21C-0

ACOPOS P3 hybrid motor cable EnDat 3, length 10 m

MPN: 8ECH0010.1A21C-0
Category: EnDat3 motor hybrid cable 0.75mm²

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8ECH0010.1A21C-0?

ACOPOS P3 hybrid motor cable EnDat 3, length 10 m, 4x 0.75 mm² + 2x 0.34 mm² + 2x 24 AWG, series 915 8-pin female motor connector, Mini I/O 8-pin male connector, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Cable cross section	4x 0.75 mm² + 2x 0.34 mm² + 2x 24 AWG
Durability	Oil resistance per EN 50363-10-2 (note: Values refer to the raw cable being used.)
Certification	E170315 cURus AWM STYLE 21209 90°C 1000 V - AWM I/II A/B 90°C 1000 V FT1 YY/WW (note: Values refer to the raw cable being used.)

Cable construction

Power lines – Quantity	4
Power lines – Wire insulation	PP
Power lines – Wire colors	Black U/L1/C/L+, black V/L2, black W/L3/D/L, yellow/green
Power lines – Variant	Copper stranded wire
Power lines – Cross section	0.75 mm²
Power lines – Shield	No
Power lines – Stranding	No
Supply lines – Quantity	2
Supply lines – Wire insulation	PP
Supply lines – Wire colors	Black
Supply lines – Variant	Copper stranded wire
Supply lines – Cross section	0.34 mm²
Supply lines – Shield	Tinned copper braiding, optical coverage >90% and foil shield
Supply lines – Stranding	2 elements (black no. 5-6) and 2 filling elements
Signal line – Quantity	2
Signal line – Wire insulation	PP
Signal line – Wire colors	Blue, white
Signal line – Variant	2x copper stranded wire
Signal line – Cross section	2x 24 AWG
Signal line – Shield	Tinned copper braiding, optical coverage >85% and foil shield
Signal line – Stranding	Two insulated wires are twisted into a pair.
Outer jacket – Material	PUR
Outer jacket – Color	Orange, similar to RAL 2003 flat
Outer jacket – Labeling	B&R 4 G 0.75 + 1x(2x0.34)C + 1x(2xAWG24)C C E170315 cURus AWM STYLE 21209 AWM I/II A/B 90°C 1000 V FT1 CE (note: Values refer to the raw cable being used.)
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	Series 915 8-pin female hybrid motor connector
Mating cycles	<500
Contacts	8
Additional connectors	8-pin male Mini I/O encoder connector; Mating cycles: <1500; Contacts: 8; Degree of protection per EN 60529: IP30 when connected
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Test voltage – Wire - Wire	3 kV
Test voltage – Wire - Shield	3 kV
Conductor resistance – Power lines	≤26 Ω/km
Conductor resistance – Supply lines	≤53 Ω/km
Conductor resistance – Signal line	≤87.7 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	13 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	11.5 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	13.5 A
Insulation resistance	≥500 MΩ*km

Ambient conditions

Temperature – Moving	-40°C to +90°C
Temperature – Static	-40°C to +90°C

Mechanical properties

Dimensions – Length	10 m
Dimensions – Diameter	10.70 mm ±0.25 mm
Bend radius – Single bend	>32.1 mm
Bend radius – Moving	≥80.25 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≤3,000,000
Drag chain data – Velocity	Max. 300 m/min
Weight	1.694 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8ECH0010.1A21C-0PDF · 544 KB · 1.00 (10/07/2025) - EN
