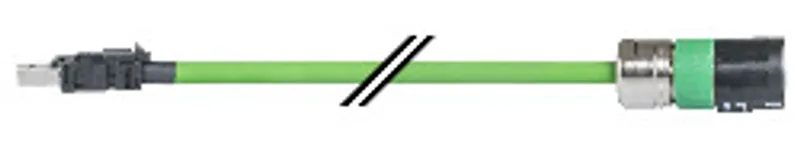

B&R 8ECF0050.1221C-0

ACOPOS P3 EnDat 2.2 cable, length 50 m

MPN: 8ECF0050.1221C-0
Category: EnDat 2.2 cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8ECF0050.1221C-0?

ACOPOS P3 EnDat 2.2 cable, length 50 m, 1x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 8-pin Mini I/O male connector, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Cable cross section	4x 0.14 mm² + 4x 0.35 mm²
Durability	Oil resistance per DIN EN 50363-10-2 (VDE 0207-363-10-2) as well as standard cleaning agents and hydraulic oil (note: Values refer to the raw cable being used.)
Certification	UL AWM Style 20963, 80°C, 30 V, E63216 (note: Values refer to the raw cable being used.)

Cable construction

Supply lines – Quantity	4
Supply lines – Wire insulation	Special thermoplastic material
Supply lines – Wire colors	White/Green, brown/green, blue, white
Supply lines – Variant	Tinned copper stranded wire
Supply lines – Cross section	0.35 mm²
Supply lines – Shield	No
Supply lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	Polyolefin foam
Signal line – Wire colors	Yellow, gray, pink, violet
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.14 mm²
Signal line – Shield	No
Signal line – Stranding	All 4 wires together
Outer jacket – Material	PUR
Outer jacket – Color	Green flat
Outer jacket – Labeling	B&R 4x0,14 + 4x0,35 FLEX (UL) AWM STYLE 20963 80°C 30 V E63216 (note: Values refer to the raw cable being used.)
Cable stranding	With terminating foil shield
Cable shield	Copper/Tin braiding, optical coverage ≥85%

Connector

Type	12-pin female series 615 signal connector
Mating cycles	<500
Contacts	12
Additional connectors	8-pin male Mini I/O encoder connector; Mating cycles: <1500; Contacts: 8; Degree of protection per EN 60529: IP30 when connected
Degree of protection per EN 60529	IP66/67 when connected

Electrical properties

Test voltage – Wire - Wire	1 kV
Test voltage – Wire - Shield	0.5 kV
Conductor resistance – Supply lines	≤55 Ω/km
Conductor resistance – Signal line	≤134 Ω/km
Operating voltage	≤30 V
Insulation resistance	>200 MΩ*km

Ambient conditions

Temperature – Moving	-10°C to 80°C
Temperature – Static	-40°C to 80°C

Mechanical properties

Dimensions – Length	50 m
Dimensions – Diameter	6 mm ±0.2 mm
Bend radius – Single bend	≥19 mm
Bend radius – Moving	≥47 mm
Drag chain data – Acceleration	≤6 g
Drag chain data – Flex cycles	≥3000000 (note: Valid at an ambient temperature of 20°C and bend radius of 78 mm.)
Drag chain data – Velocity	≤4 m/s
Weight	3 kg
