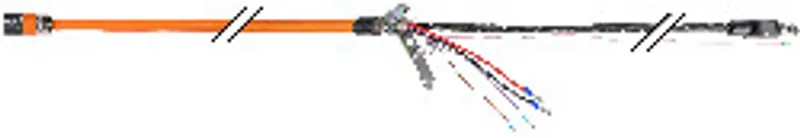

B&R 8D1CH0005.11120-0
ACOPOSmotor compact power supply cable, length 5 m
- MPN
- 8D1CH0005.11120-0
- Category
- Supply cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8D1CH0005.11120-0?
ACOPOSmotor compact power supply cable, length 5 m, 2x 2.5 mm² + 1x (4x 0.34 mm²) + 1x (2x 0.34 mm²) + 1x 0.34 mm² + PA pipe 2.0 mm / 1.0 mm, 1x 9-pin female hybrid connector, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 2x2.5 + 1x(4x0.34)St-C + 1x(2x0.34)C + 1x0.34qmm + PA pipe 2.0/1.0 |
| Durability | Oil resistant per DIN EN 60811-404 ; Halogen-free per DIN EN 60754-1 ; Flame-retardant per DIN EN IEC 60332-1-2 ; Hydrolysis resistance per DIN EN 50396 ; Microbial resistance per DIN EN 50396; Silicone-free / PWIS per VW PV 3.7.10 |
| Certification | E170315 cRUus AWM STYLE 20233 AWM I/II A/B 80°C 300 V FT1 (note: Values refer to the raw cable being used.) |
Cable construction
| Outer jacket – Material | TPU, flame-retardant, halogen-free |
| Outer jacket – Color | Orange similar to RAL 2003 |
Connector
| Type | 9-pin female hybrid connector |
| Mating cycles | <500 |
| Contacts | 9 |
| Additional connectors | RJ45 |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Nominal current | 20 A (power); 0.5 A (signal) |
| Operating voltage | Max. 58 VDC (power); Max. 30 VDC (signal) |
Ambient conditions
| Temperature – Moving | -30°C to +80°C (drag chain: -20°C to +60°C) |
| Temperature – Static | -40°C to +90°C |
Mechanical properties
| Dimensions – Length | 5 m |
| Dimensions – Diameter | 11.7 mm ±0.3 mm |
| Bend radius – Single bend | ≥3x cable diameter |
| Bend radius – Moving | ≥12.5x cable diameter |
| Drag chain data – Acceleration | 50 m/s² (depends on the length of the travel path) |
| Drag chain data – Flex cycles | ≥3,000,000 |
| Drag chain data – Speed | Max. 300 m/min |
| Torsional strength | ±30°/m |
| Weight | 1.4 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
8D1CH0005.11120-0: frequently asked questions
When can 8D1CH0005.11120-0 be shipped?
8D1CH0005.11120-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8D1CH0005.11120-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8D1CH0005.11120-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8D1CH0005.11120-0, subject to availability and destination.
