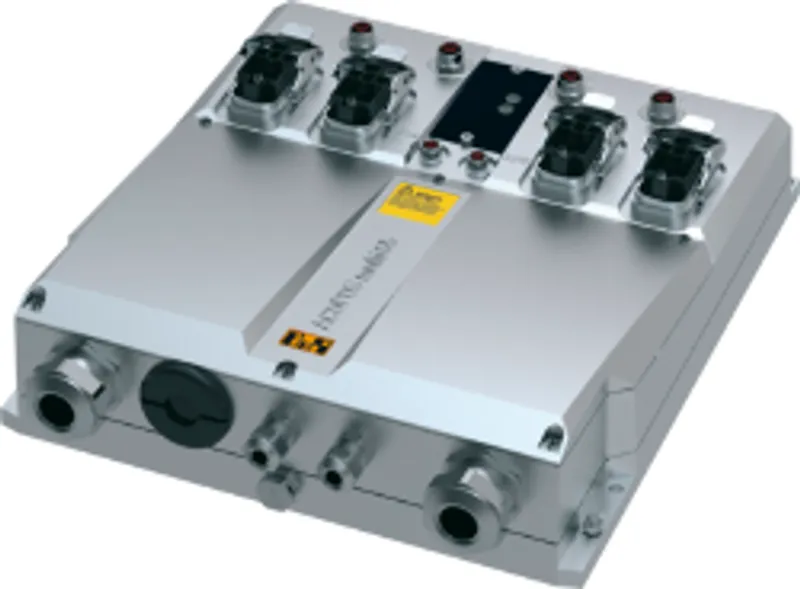

What is the B&R 8CVE28000HC00.00-1?
Remote power distribution up to 30 kW using up to four hybrid cable outlets
Safeguards the DC bus
Diagnostics for all connections
Integrated connections for local I/O nodes
ACOPOSremote/ACOPOSmotor connection box, AS, IP65, cold plate mounting, 4x connection for hybrid cable, 2x 24 VDC Out
Specifications
General information
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – Functional safety | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| B&R ID code | 0xB41D |
| Status indicators | Safety status, interface status |
| Cooling and mounting type | Cold plate mounting |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Execution – DC+, DC-, PE | Cage clamp terminal block |
| Execution – Shield connection | Yes (via cable gland) |
| Terminal connection cross sections – With wire end sleeves | 0.25 to 10 mm² |
| Terminal connection cross sections – UL/C-UL-US | 24 to 8 |
| Terminal connection cross sections – CSA | 24 to 8 |
| Terminal cross sections (cable diameter) | 14 to 21 mm (M32 cable grommet) |
| Max. line length | 30 m |
24 VDC power supply
| Execution – 24 VDC, COM, PE | Cage clamp terminal block |
| Execution – Shield connection | No |
| Terminal connection cross sections – With wire end sleeves | 0.25 to 10 mm² |
| Terminal connection cross sections – UL/C-UL-US | 24 to 8 |
| Terminal connection cross sections – CSA | 24 to 8 |
| Quantity | 2 |
| Input voltage | 24 VDC -25% / +20% |
| Max. power consumption | In preparation (note: Power consumption refers to the 24 VDC2 input since this supplies the module.) |
| Terminal cross sections (cable diameter) | 14 to 21 mm (M32 cable grommet) |
| Max. line length | 30 m |
Hybrid cable outlets
| DC+ and DC- fuse protection – 40°C | In preparation |
| DC+ and DC- fuse protection – 60°C | 20 A |
| DC+ and DC- fuse protection – Type | Melting fuse conforming to UL/CSA, ø 10 x 38 mm (note: For a cable with 15 A rated current, KLKD020 fuses from Littlefuse must be used.) |
| DC+ and DC- fuse protection – Tripping characteristic | Fast-acting |
| 24 VDC fuse protection – 40°C | In preparation |
| 24 VDC fuse protection – 60°C | 15 A |
| 24 VDC fuse protection – Type | Blade fuses conforming to UL/CSA |
| 24 VDC fuse protection – Tripping characteristic | Fast-acting |
| Continuous power depending on rated current of fuse – 20 A | 10.1 kW |
| Continuous power depending on rated current of fuse – 15 A | 240 W |
| Continuous current depending on rated current of fuse – 20 A | 13.5 A eff |
| Continuous current depending on rated current of fuse – 15 A | 10.1 A |
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 10% per 1,000 m |
| Power dissipation with continuous power – 20 A | In preparation |
| Power dissipation with continuous power – 15 A | In preparation |
| Protective measures – DC+ and DC- | No (overload status can be retrieved via fieldbus) (note: In preparation.) |
| Protective measures – 24 VDC | No (overload status can be retrieved via fieldbus) (note: In preparation.) |
| Protective measures – DC+ and DC- | Yes |
| Protective measures – 24 VDC | Yes |
| Quantity | 4 (each with DC bus, 24 VDC, 2x enable, POWERLINK) |
| Continuous current of enable outputs | Max. 500 mA |
| Max. line length | 30 m |
| Execution | 15-pin male TYCO connector (note: It is important to note that the 15-pin male TYCO connector is designed for max. 20 mating cycles.) |
24 VDC output
| Fuse protection per pin – 40°C | 5 A |
| Fuse protection per pin – 60°C | 7.5 A |
| Fuse protection per pin – Type | Blade fuses conforming to UL/CSA |
| Fuse protection per pin – Tripping characteristic | Fast-acting |
| Protective measures – Overload-proof | No (overload status can be retrieved via fieldbus) (note: In preparation.) |
| Protective measures – Short-circuit proof | Yes |
| Execution – 24 VDC, COM | Female M8 connector |
| Quantity | 2 |
| Output voltage | Depends on the 24 VDC power supply |
| Continuous current | Max. 8 A (max. 4 A per pin) |
Fieldbus
| Type | POWERLINK (V1/V2) 100BASE-T (ANSI/IEE 802.3) |
| Execution | 1x internal 4-port hub, 1x internal 5-port hub; 4x 19-pin hybrid connector, 4x M12 female connector |
| Line length | Max. 100 m between two stations (segment length) (note: Limited to 30 m when using hybrid cables.) |
| Transfer rate | 100 Mbit/s |
Enable inputs
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Terminal connection cross sections – With plastic wire end sleeves | 0.25 to 1.5 mm² |
| Terminal connection cross sections – UL/C-UL-US | 26 to 12 |
| Terminal connection cross sections – CSA | - |
| Quantity | 2 |
| Permissible input current | Max. 2 A |
| Execution | Cage clamp terminal block |
| Terminal cross sections (cable diameter) | 5 to 9 mm (M16 cable grommet) |
| Max. line length | 30 m |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | Yes |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP65 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C (note: The temperature of the module's mounting surface is not permitted to exceed 60°C.) |
| Temperature – Maximum | 60°C (note: At ambient temperatures above 40°C, the module must be coupled to a cooling surface (machine base frame).) |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Width | 293 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Height | 328 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Depth | 80 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Weight | 7 kg |
No matching specifications
Accessories
Required accessories (order separately)
| 8CXS002.0000-00 | Fuse sets — ACOPOSremote fuse set: 4x blade fuse 15 A, fast-acting |
| 8CXS000.0000-00 | Fuse sets — ACOPOSremote fuse set: 8x fuse 10 x 38 mm, 20 A, fast-acting |
Optional accessories (25)
| 8CXM001.000A-00 | Accessory sets — ACOPOSremote accessory set: 100x hex socket screw M6x25 mm for 8CVE connection boxes |
| 8CXM001.0005-00 | Accessory sets — ACOPOSremote accessory set: 52x hex socket screw M6x25 mm for 8CVE connection boxes |
| 8CXM001.0002-00 | Accessory sets — ACOPOSremote accessory set: 20x hex socket screw M6x25 mm for 8CVE connection boxes |
| 8CXM001.0000-00 | Accessory sets — ACOPOSremote accessory set: 4x hex socket screw M6x25 mm for 8CVE connection boxes |
| 8CXD000.0000-00 | Accessory sets — ACOPOSremote accessory set: 1x dry cartridge M36x1.5 for 8CVE connection box |
| 8CXC001.000A-00 | Accessory sets — ACOPOSremote accessory set: 100x bridge, 2-pin, fully isolated, pitch 10 mm |
| 8CXC001.0005-00 | Accessory sets — ACOPOSremote accessory set: 50x bridge, 2-pin, fully isolated, pitch 10 mm |
| 8CXC001.0002-00 | Accessory sets — ACOPOSremote accessory set: 20x bridge, 2-pin, fully isolated, pitch 10 mm |
| 8CXC001.0000-00 | Accessory sets — ACOPOSremote accessory set: 2x bridge, 2-pin, fully isolated, pitch 10 mm |
| 8CXC000.0000-00 | Accessory sets — Accessory set: 1x slot cover for hybrid connector |
| 8CXS002.000A-00 | Fuse sets — ACOPOSremote fuse set: 100x blade fuse 15 A, fast-acting |
| 8CXS002.0005-00 | Fuse sets — ACOPOSremote fuse set: 52x blade fuse 15 A, fast-acting |
| 8CXS002.0002-00 | Fuse sets — ACOPOSremote fuse set: 20x blade fuse 15 A, fast-acting |
| 8CXS001.000A-00 | Fuse sets — ACOPOSremote fuse set: 100x blade fuse 7.5 A, fast-acting |
| 8CXS001.0005-00 | Fuse sets — ACOPOSremote fuse set: 52x blade fuse 7.5 A, fast-acting |
| 8CXS001.0002-00 | Fuse sets — ACOPOSremote fuse set: 20x blade fuse 7.5 A, fast-acting |
| 8CXS001.0000-00 | Fuse sets — ACOPOSremote fuse set: 4x blade fuse 7.5 A, fast-acting |
| 8CCH0020.11110-1 | Hybrid cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems; Hybrid connector system for s… |
| 8CCH0015.11110-1 | Hybrid cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems; Hybrid connector system for s… |
| 8CCH0010.11110-1 | Hybrid cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems; Hybrid connector system for s… |
| 8CCH0005.11110-1 | Hybrid cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems; Hybrid connector system for s… |
| 8CCH0003.11130-1 | Hybrid cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems; Hybrid connector system for s… |
| 8CCH0003.11110-1 | Hybrid cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOSremote/ACOPOSmotor drive systems; Hybrid connector system for s… |
| X67AC0M12 | Threaded Caps — X67 M12 threaded caps, 50 pcs. |
| X67AC0M08 | Threaded caps — X67 M8 threaded caps, 50 pcs. |
