B&R
8CM009.12-1B&R 8CM009.19-3
Motor cable, length 9 m, 4x 4 mm² + 2x 0.75 mm² + 2x 1 mm²
- MPN
- 8CM009.19-3
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8CM009.19-3?

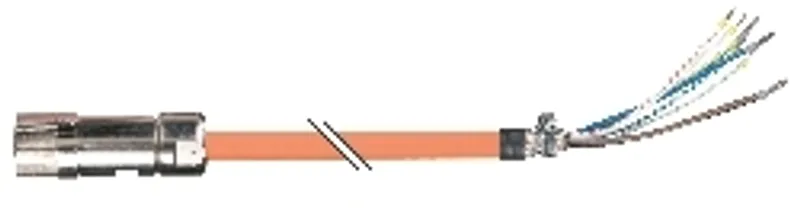

Motor cable, length 9 m, 4x 4 mm² + 2x 0.75 mm² + 2x 1 mm², 8-pin female Intercontec motor connector size 1.5, medium wire stripping length, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 4 mm² + 2x 2x 1 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM style 20234, 80°C, 1000 V, E63216 and CSA AWM I/II A/B, 90°C, 1000 V, FT2 LL46064 |
Cable construction
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | Special thermoplastic material |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 4 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White, white/red, white/blue, white/green |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 1 mm² |
| Signal line – Shield | Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield |
| Signal line – Stranding | White with white/red and white/blue with white/green |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Outer jacket – Labeling | BERNECKER & RAINER 4x4,0+2x2x1,0 FLEX |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
Connector
| Type | Intercontec 8-pin female motor connector, size 1.5 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 1500 VAC |
| Test voltage – Wire - Shield | 1500 VAC |
| Conductor resistance – Power lines | ≤0.03 Ω |
| Conductor resistance – Signal line | ≤0.09 Ω |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 36.4 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 31.9 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 38.2 A |
| Operating voltage | Max. 1000 V |
| Insulation resistance | >40 GΩ |
Ambient conditions
| Temperature – Moving | -10 to 70°C |
| Temperature – Static | -20 to 90°C |
Mechanical properties
| Dimensions – Length | 9 m |
| Dimensions – Diameter | 15.8 mm ±0.5 mm |
| Bend radius – Single bend | >50 mm |
| Bend radius – Moving | ≥122 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3,000,000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 3.98 kg |
