B&R
8CE060.12-1B&R 8CE100.30-1
Cannot be in cable drag chains
- MPN
- 8CE100.30-1
- Category
- EnDat 2.1 cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

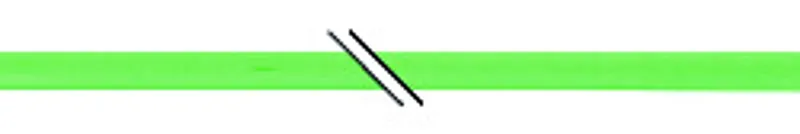

What is the B&R 8CE100.30-1?
Cannot be used in cable drag chains
Not pre-assembled
Observe the maximum permissible cable lengths!
See also technical data of the respective inverter modules!
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 5x 2x 0.14 mm² + 1x 2x 0.50 mm² |
| Durability | Oil resistance per DIN VDE 0281-1 (TM5) (HD 21.1 / DIN EN 60811-1-1/2-1); Flame resistance per IEC 60332-1-2 (note: Values refer to the raw cable being used.) |
| Certification | E130266 cRUus AWM STYLE 2637 and AWM I/II A/B 90°C 30 V FT1 (note: Values refer to the raw cable being used.) |
Cable construction
| Supply lines – Quantity | 2 |
| Supply lines – Wire insulation | PVC |
| Supply lines – Wire colors | White/Green, white/red |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.5 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | White/Red with white/green and filler elements |
| Signal line – Quantity | 10 |
| Signal line – Wire insulation | PVC |
| Signal line – Wire colors | Blue, brown, yellow, gray, green, pink, red, black, violet, white |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.14 mm² |
| Signal line – Shield | No |
| Signal line – Stranding | Green with brown, gray with yellow, white with violet, black with red, pink with blue |
| Outer jacket – Material | PVC |
| Outer jacket – Color | Green |
| Outer jacket – Labeling | B&R 5x2x0.14 + 1x2x0.5 * E130266 cURus AWM STYLE 2637 * AWM I/II A/B 90°C 30 V FT1 * <Batch number> (note: Values refer to the raw cable being used.) |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper braiding, optical coverage >85% and foil shield |
Electrical properties
| Test voltage – Wire - Wire | 1 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Supply lines | ≤40 Ω/km |
| Conductor resistance – Signal line | ≤140 Ω/km |
| Insulation resistance | ≥20 MΩ*km |
Ambient conditions
| Temperature – Moving | -10°C to +80°C |
| Temperature – Static | -40°C to +90°C |
Mechanical properties
| Dimensions – Length | 100 m |
| Dimensions – Diameter | 7.6 mm ±0.2 mm |
| Bend radius – Single bend | ≥31 mm |
| Bend radius – Moving | ≥62 mm |
| Weight | 8 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (2)
