What is the B&R 8CCH0020.11120-0?

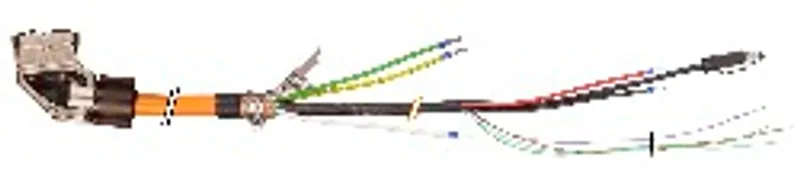

Cables for connecting 8BVE ACOPOSmulti expansion modules and ACOPOSremote/ACOPOSmotor drive systems
Hybrid connector system for secure connections
Hybrid cable for connecting 8BVE to 8CVI or 8DI, length 20 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 1x 15-pin female TYCO connector
Specifications
General information
| Certifications – UKCA | Yes |
| Cable cross section | 5x 2.5 mm² + 4x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 LI |
| Durability | In preparation |
| Certification | UL AWM style 20234, 80°C, 1000 V and CSA C22.2 no. 210.2 I/II A/B, FT1 |
Cable construction
| Power lines – Quantity | 5 |
| Power lines – Wire insulation | Special thermoplastic material |
| Power lines – Wire colors | Black, red, green, white, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 2.5 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | Pink, blue, violet, gray |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 0.75 mm² |
| Signal line – Shield | Yes |
| Signal line – Stranding | Yes |
| Data lines – Quantity | 4 |
| Data lines – Wire insulation | Special thermoplastic material |
| Data lines – Wire colors | Orange, white, yellow, blue |
| Data lines – Variant | Tinned copper stranded wire |
| Data lines – Cross section | 0.34 mm² |
| Data lines – Shield | Yes |
| Data lines – Stranding | Yes |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Outer jacket – Labeling | In preparation |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
Connector
| Type | 15-pin female TYCO connector |
| Mating cycles | Max. 20 |
| Contacts | 15 |
| Additional connectors | POWERLINK RJ45 male connector |
| Degree of protection per EN 60529 | IP65 |
Electrical properties
| Test voltage – Wire - Wire | 3 kV AC |
| Test voltage – Wire - Shield | 3 kV AC |
| Conductor resistance – Power lines | ≤0.16 Ω |
| Conductor resistance – Signal line | ≤0.52 Ω |
| Conductor resistance – Data lines | ≤1.12 Ω |
| Operating voltage | Power lines: ≤1000 V; Signal lines: ≤1000 V; Data lines: ≤100 V |
| Current-carrying capacity | In preparation |
| Insulation resistance | >25 GΩ |
Ambient conditions
| Temperature – Moving | -40 to 80°C |
| Temperature – Static | -40 to 80°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 14.6 mm ±0.4 mm |
| Bend radius – Single bend | >40 mm |
| Bend radius – Moving | ≥140 mm |
| Drag chain data – Acceleration | <4 m/s² |
| Drag chain data – Flex cycles | ≥5,000,000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 7 kg |
