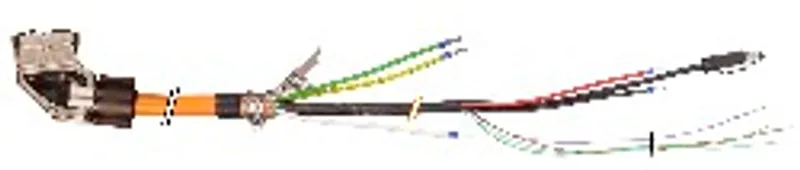

B&R 8CCH0016.11120-1

8BVE / 8CVI connection cable

MPN: 8CCH0016.11120-1
Category: 8BVE / 8CVI connection cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8CCH0016.11120-1?

Can be used in cable drag chains

Cable for connection of ACOPOSremote / ACOPOSmotor drive systems to ACOPOSmulti 8BVE expansion modules

Hybrid connector system for secure connections

Integrated shield plate

Hybrid cable for connecting 8BVE to 8CVI or 8DI, length 16 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 1x 15-pin female TYCO connector, 1x RJ45 connector, integrated shield fixing, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	5x 2.5 mm² + 2x 2x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 VZN
Durability	In preparation
Certification	E130266 cURus AWM style 20234, 80°C, 1000 V and CSA C22.2 No. 210.2 I/II A/B, FT1 (note: Values refer to the raw cable being used.)

Cable construction

Power lines – Quantity	5
Power lines – Wire insulation	PE
Power lines – Wire colors	Black, red, brown, white, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	2.5 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PE
Signal line – Wire colors	Pink/Blue, violet/gray
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.75 mm²
Signal line – Shield	Yes
Signal line – Stranding	Yes
Data lines – Quantity	4
Data lines – Wire insulation	PE
Data lines – Wire colors	VZN (cat. 5)
Data lines – Variant	Tinned copper stranded wire
Data lines – Cross section	0.34 mm²
Data lines – Shield	Yes
Data lines – Stranding	Yes
Outer jacket – Material	PUR
Outer jacket – Color	Orange, similar to RAL 2003 flat
Outer jacket – Labeling	B&R 5x2.5 + 2x2x0.75 + (1x4x22AWG) * E130266 cURus AWM STYLE 20234 * AWM I/II A/B 80°C 1000 V FT1 * "internal lot number" (note: Values refer to the raw cable being used.)
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	15-pin female TYCO connector
Mating cycles	Max. 20
Contacts	15
Degree of protection per EN 60529	IP65

Electrical properties

Test voltage – Wire - Wire	2.5 mm²: 3 kV; 0.75 mm²: 2 kV; 0.34 mm²: 2 kV
Test voltage – Wire - Shield	2.5 mm²: 3 kV; 0.75 mm²: 1 kV; 0.34 mm²: 1 kV
Conductor resistance – Power lines	≤8 Ω/km
Conductor resistance – Signal line	≤26 Ω/km
Conductor resistance – Data lines	≤56 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	23.7 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	27.3 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	29.1 A
Operating voltage	Power lines: ≤1000 V; Signal lines: ≤1000 V; Data lines: ≤100 V
Insulation resistance	≥500 MΩ*km

Ambient conditions

Temperature – Moving	-40°C to +80°C
Temperature – Static	-40°C to +80°C

Mechanical properties

Dimensions – Length	16 m
Dimensions – Diameter	14.6 mm ±0.4 mm
Bend radius – Single bend	>60 mm
Bend radius – Moving	≥150 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≥5,000,000
Drag chain data – Velocity	Max. 300 m/min
Weight	5.6 kg
