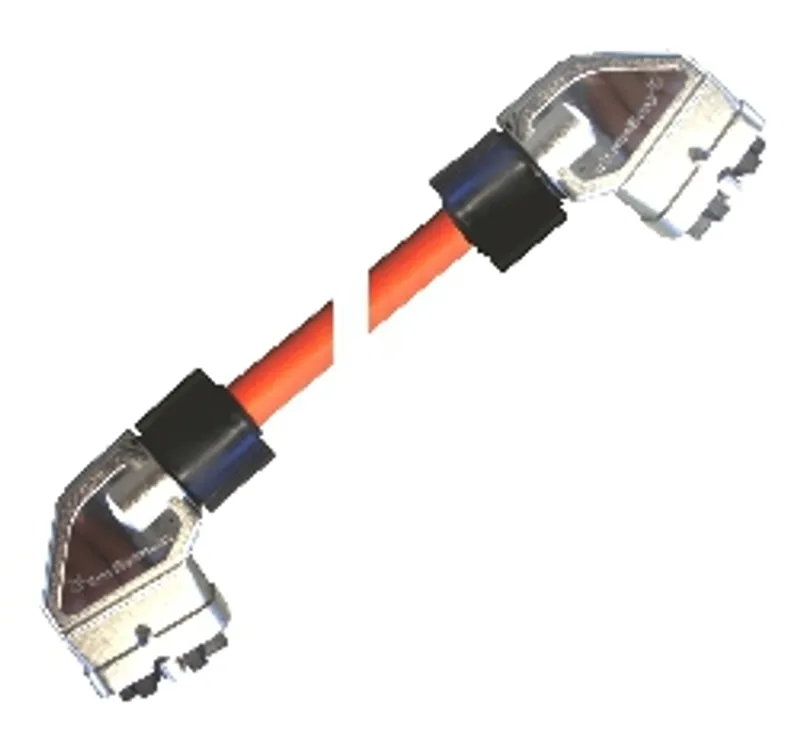

B&R 8CCH0006.11110-0

Name: B&R 8CCH0006.11110-0
Brand: B&R
SKU: 8CCH0006.11110-0

MPN: 8CCH0006.11110-0 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.5 kg

Shipping & availability

When can 8CCH0006.11110-0 be shipped?

8CCH0006.11110-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8CCH0006.11110-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8CCH0006.11110-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CCH0006.11110-0, subject to availability and destination.

Hybrid cable, length 6 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 2x 15-pin female TYCO connector

Specifications

Cable cross section	5x 2.5 mm² + 4x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 LI
Durability	In preparation
Certification	UL AWM style 20234, 80°C, 1000 V and CSA C22.2 no. 210.2 I/II A/B, FT1
CE	Yes
UKCA	Yes
UL	cULus E225616 Power conversion equipment
Quantity	4
Wire insulation	Special thermoplastic material
Wire colors	Orange, white, yellow, blue
Variant	Tinned copper stranded wire
Cross section	0.34 mm²
Shield	Yes
Stranding	Yes
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield
Material	PUR
Color	Orange, similar to RAL 2003 flat
Labeling	In preparation
Type	15-pin female TYCO connector
Mating cycles	Max. 20
Contacts	15
Degree of protection per EN 60529	IP65
Operating voltage	Power lines: ≤1000 V Signal lines: ≤1000 V Data lines: ≤100 V
Wire - Wire	3 kV AC
Wire - Shield	3 kV AC
Current-carrying capacity	20 A
Power lines	≤0.05 Ω
Signal line	≤0.16 Ω
Data lines	≤0.34 Ω
Insulation resistance	>83.33 GΩ
Moving	≥140 mm
Static	-40 to 80°C
Length	6 m
Diameter	14.6 mm ±0.4 mm
Single bend	>40 mm
Acceleration	<4 m/s²
Flex cycles	≥5,000,000
Velocity	≤4 m/s
Weight	2.5 kg
