B&R 8BCR0015.11230-0
Resolver Cables SpringTec connector
- MPN
- 8BCR0015.11230-0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BCR0015.11230-0?
UL/CSA listed
Can be used in cable drag chains
Assembled specifically for 8BCRxxxx.1121A-0 motor cables
springtec - Innovative connector system for fast and secure connections

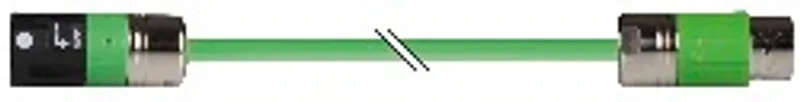

Cable extension for resolver cables with series 615 signal connector, length 15 m, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 3x 2x 24 19 AWG |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils (note: Values refer to the raw cable being used.) |
Cable construction
| Signal line – Quantity | 6 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White/Brown, green/yellow, gray/pink |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 24 AWG / 19 AWG |
| Signal line – Shield | No |
| Signal line – Stranding | White with brown, green with yellow, gray with pink |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Green, similar to RAL 6018 flat |
| Cable stranding | The 3 pairs together covered by foil shield |
| Cable shield | Copper braiding, optical coverage ≥90% and foil shield |
Connector
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 12-pin male coupling; Mating cycles: <500; Contacts: 12; Degree of protection per EN 60529: IP66/67 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 1.5 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – Signal line | ≤86 Ω/km |
| Operating voltage | ≤30 V eff |
| Insulation resistance | >200 MΩ*km |
Ambient conditions
| Temperature – Moving | -20°C to +80°C |
| Temperature – Static | -20°C to +90°C |
Mechanical properties
| Dimensions – Length | 15 m |
| Dimensions – Diameter | 6.5 mm ±0.2 mm |
| Bend radius – Single bend | ≥20 mm |
| Bend radius – Moving | ≥50 mm |
| Drag chain data – Acceleration | ≤6 g |
| Drag chain data – Flex cycles | >3,000,000 (note: At an ambient temperature of 20°C and bend radius of 65 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 1.1 kg |
