B&R 8BCM0018.1111A-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 1.5 mm² motor cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.7 kg |
Shipping & availability
When can 8BCM0018.1111A-0 be shipped?
8BCM0018.1111A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCM0018.1111A-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCM0018.1111A-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCM0018.1111A-0, subject to availability and destination.

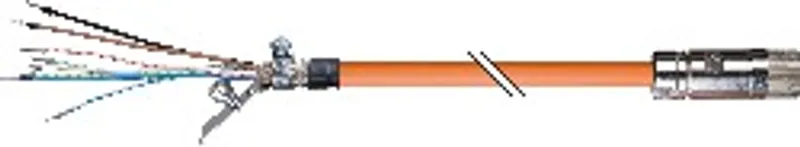

Can be used in cable drag chainsAssembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with motor connector size 1speedtec - Innovative connector system for secure connectionsIntegrated shield plateA shield plate is attached to ACOPOSmulti 8BCM motor cables. If this shield plate is correctly installed on the respective ACOPOSmulti 8BVI inverter module, no additional shielding measures are necessary. ACOPOSmulti motor cable, length 18 m, 4x 1.5 mm² + 2x 2x 0.75 mm², 8-pin female speedtec motor connector size 1, integrated shield plate, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 4x 1.5 mm² + 2x 2x 0.75 mm² |
| Durability | Oil resistance per HD 22.10 appendix A DIN EN 60811-404 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| Quantity | 4 |
| Wire insulation | PP |
| Wire colors | White, white/red, white/blue, white/green |
| Variant | Tinned copper stranded wire |
| Cross section | 0.75 mm² |
| Shield | Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield |
| Stranding | White with white/red and white/blue with white/green |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
| Material | TPU |
| Color | Orange, similar to RAL 2003 flat |
| Type | 8-pin female speedtec motor connector, size 1 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Operating voltage | Max. 1000 VAC (UL) |
| Wire - Wire | 4 kV |
| Wire - Shield | 4 kV |
| Power lines | ≤13.7 Ω/km |
| Signal line | ≤26.7 Ω/km |
| Insulation resistance | ≥500 MΩ*km |
| Wall mounting | 20 A |
| Installed in conduit or cable duct | 17.8 A |
| Installed in cable tray | 20.9 A |
| Moving | >94 mm |
| Static | -20°C to +90°C |
| Length | 18 m |
| Diameter | 12.2 mm ±0.3 mm |
| Single bend | >38 mm |
| Acceleration | Max. 50 m/s² (depends on the length of the travel path) |
| Flex cycles | ≥5,000,000 |
| Velocity | Max. 300 m/min |
| Weight | 2.7 kg |
