B&R 8BCF0050.1221B-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.2 cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.9 kg |
Shipping & availability
When can 8BCF0050.1221B-0 be shipped?
8BCF0050.1221B-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCF0050.1221B-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCF0050.1221B-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCF0050.1221B-0, subject to availability and destination.

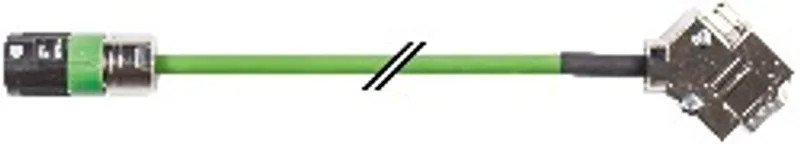

Can be used in cable drag chainsAssembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with series 615 built-in connectorsitec - Innovative connector system for fast and secure connections EnDat 2.2 cable, length 50 m, 1x 4x 0.14 mm² + 4x 0.35 mm², 12-pin female series 615 signal connector, 9-pin male DSUB servo connector, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 4x 0.14 mm² + 4x 0.35 mm² |
| Durability | Oil resistance per DIN EN 50363-10-2 (VDE 0207-363-10-2) as well as standard cleaning agents and hydraulic oil |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Quantity | 4 |
| Wire insulation | Polyolefin foam |
| Wire colors | Yellow, gray, pink, violet |
| Variant | Tinned copper stranded wire |
| Cross section | 0.14 mm² |
| Shield | No |
| Stranding | All 4 wires together |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper/Tin braiding, optical coverage ≥85% |
| Material | PUR |
| Color | Green flat |
| Labeling | B&R 4x0,14 + 4x0,35 FLEX (UL) AWM STYLE 20963 80°C 30 V E63216 |
| Type | 12-pin female series 615 signal connector |
| Mating cycles | <500 |
| Contacts | 12 |
| Additional connectors | 9-pin male DSUB servo connector Mating cycles: <200 Contacts: 9 Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Operating voltage | ≤30 V |
| Wire - Wire | 1 kV |
| Wire - Shield | 0.5 kV |
| Supply lines | ≤55 Ω/km |
| Signal line | ≤134 Ω/km |
| Insulation resistance | >200 MΩ*km |
| Moving | ≥47 mm |
| Static | -20°C to +80°C |
| Length | 50 m |
| Diameter | 6 mm ±0.2 mm |
| Single bend | ≥19 mm |
| Acceleration | ≤6 g |
| Flex cycles | ≥3000000 |
| Velocity | ≤4 m/s |
| Weight | 2.9 kg |
