B&R 8BCF0009.12230-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.2 cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.63 kg |
Shipping & availability
When can 8BCF0009.12230-0 be shipped?
8BCF0009.12230-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCF0009.12230-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCF0009.12230-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCF0009.12230-0, subject to availability and destination.

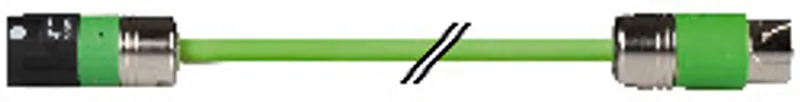

Cable extension for EnDat 2.2 cables with series 615 signal connector, length 9 m, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 1x 4x 0.14 mm² + 4x 0.34 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 test type B |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| Quantity | 4 |
| Wire insulation | Special thermoplastic material |
| Wire colors | Yellow, gray, pink, violet |
| Variant | Tinned copper stranded wire |
| Cross section | 0.14 mm² |
| Shield | No |
| Stranding | All 4 wires together |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper/Tin braiding |
| Material | PUR |
| Color | Black |
| Labeling | Heidenhain UR AWM style 20963 80°C 30 V E63216 |
| Type | 12-pin female springtec circular connector |
| Mating cycles | >50 |
| Contacts | 12 (4 power supply and 4 signal contacts) |
| Additional connectors | 12-pin male couplingMating cycles: >50Contacts: 12Degree of protection per EN 60529: IP67 when connected |
| Degree of protection per EN 60529 | IP67 when connected |
| Wire - Wire | 0.5 kV |
| Wire - Shield | 0.5 kV |
| Supply lines | ≤0.11 Ω |
| Signal line | ≤0.27 Ω |
| Insulation resistance | >100 GΩ |
| Moving | ≥75 mm |
| Static | -40 to 80°C |
| Length | 9 m |
| Diameter | 6 mm ±0.25 mm |
| Single bend | ≥20 mm |
| Acceleration | <60 m/s² |
| Flex cycles | ≥3000000 |
| Velocity | ≤4 m/s |
| Weight | 0.63 kg |
