B&R 8BCE0009.3111A-0
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EnDat 2.1 cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.8 kg |
Shipping & availability
When can 8BCE0009.3111A-0 be shipped?
8BCE0009.3111A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCE0009.3111A-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCE0009.3111A-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCE0009.3111A-0, subject to availability and destination.

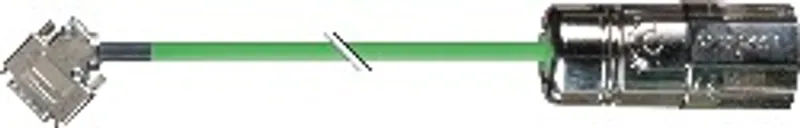

Extremely flexibleAssembled specifically for use with ACOPOSmulti drive systems and B&R servo motorsspeedtec - Innovative connector system for secure connections ACOPOSmulti EnDat 2.1 cable, length 9 m, 10x 0.14 mm² + 2x 0.5 mm², 17-pin female speedtec EnDat connector, 15-pin male DSUB servo connector
Specifications
Specifications
| Cable cross section | 5x 2x 0.14 mm² + 1x 2x 0.50 mm² |
| Durability | Oil resistance per DIN VDE 0281-1 (TM5) (HD 21.1 / DIN EN 60811-1-1/2-1)Flame resistance per IEC 60332-1-2 |
| Certification | E130266 cRUus AWM STYLE 2637 and AWM I/II A/B 90°C 30 V FT1 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616Power conversion equipment |
| Quantity | 10 |
| Wire insulation | PVC |
| Wire colors | Blue, brown, yellow, gray, green, pink, red, black, violet, white |
| Variant | Tinned copper stranded wire |
| Cross section | 0.14 mm² |
| Shield | No |
| Stranding | Green with brown, gray with yellow, white with violet, black with red, pink with blue |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper braiding, optical coverage >85% and foil shield |
| Material | PVC |
| Color | Green |
| Labeling | B&R 5x2x0.14 + 1x2x0.5 * E130266 cURus AWM STYLE 2637 * AWM I/II A/B 90°C 30 V FT1 * <Batch number> |
| Type | 17-pin female speedtec EnDat connector |
| Mating cycles | <500 |
| Contacts | 17 |
| Additional connectors | 15-pin male DSUB servo connectorMating cycles: <200Contacts: 15Degree of protection per EN 60529: IP20 when connected |
| Degree of protection per EN 60529 | IP66/67 when connected |
| Wire - Wire | 1 kV |
| Wire - Shield | 0.8 kV |
| Supply lines | ≤40 Ω/km |
| Signal line | ≤140 Ω/km |
| Insulation resistance | ≥20 MΩ*km |
| Moving | ≥62 mm |
| Static | -20°C to +90°C |
| Length | 9 m |
| Diameter | 7.6 mm ±0.2 mm |
| Single bend | ≥31 mm |
| Weight | 0.8 kg |
