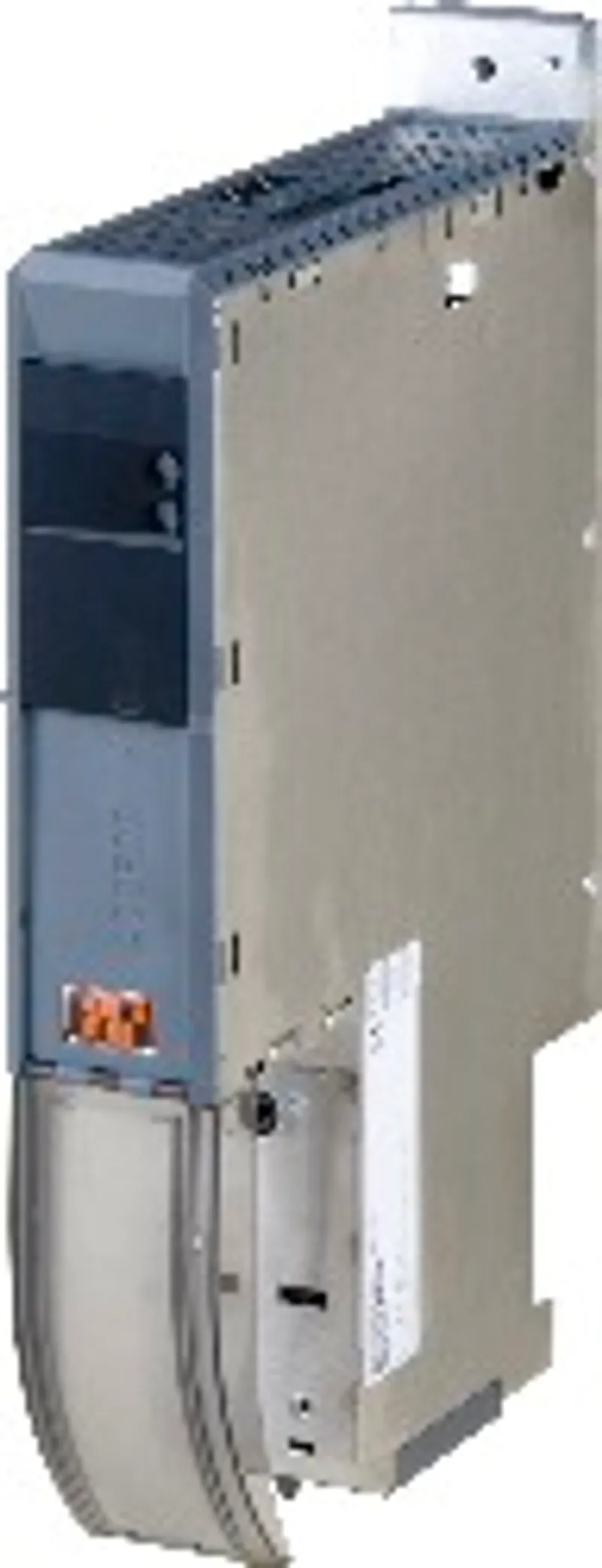

B&R 8B0C0160HC00.000-1
ACOPOSmulti auxiliary supply module, 16 A, AS, cold plate or pass-through mounting
- MPN
- 8B0C0160HC00.000-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8B0C0160HC00.000-1?
Extensive protective measures
ACOPOSmulti auxiliary supply module, 16 A, AS, cold plate or pass-through mounting
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Cooling and mounting type | Cold plate or pass-through mounting |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Voltage – Operating range in continuous operation | 260 to 800 VDC |
| Voltage – Full continuous power | 315 to 800 VDC |
| Continuous power consumption | Max. 445 W |
| Power dissipation with continuous power | 22 W (0% continuous power); 27 W (50% continuous power); 45 W (100% continuous power) (note: Continuous power on 24 VDC output) |
| DC bus capacitance | 220 nF |
| Variant | ACOPOSmulti backplane |
24 VDC output
| Output voltage – DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC / 315) |
| Output voltage – DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 40 W per 1000 m |
| Continuous power | 400 W (note: Valid under the following conditions: 750 VDC DC bus voltage, 55°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type.) |
| Continuous current | 16 ADC |
| Reduction of continuous power at ambient temperatures starting at 40°C | No reduction |
| Reduction of continuous power depending on cooling method | No reduction |
| Startup delay | Max. 1 s |
| Startup time | Approx. 5 to 20 ms |
| Residual ripple | Typ. 50 mV SS |
24 VDC internal system power supply
| Peak current (<4 s) – DC bus voltage (U DC ): 350 to 800 VDC | 21 ADC |
| Protective measures – No-load proof | Yes |
| Protective measures – Overload-proof | Yes |
| Protective measures – Short-circuit proof | Yes |
| Protective measures – Feedback protection | Max. 26 VDC (also when the power is switched off) |
| Protective measures – Overtemperature protection | Yes |
| Protective measures – Dielectric strength to ground | ±50 VDC |
| Protective measures – Output/Input isolation | SELV / PELV requirements |
| Output voltage | 25 VDC ±1.6% (note: The output voltage is limited to max. 60 VDC in the event of fault.) |
| Variant | ACOPOSmulti backplane |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous power into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Cold plate | 212 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Pass-through mounting | 209 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Width | 53 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Height | 317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Weight | Approx. 2.5 kg |
| Module width | 1 |
Accessories
Required accessories (order separately)
| 8BZ0C032000.000-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0C0xx0Hx00.000-1 modules: 1x 8TB2106.2010-00 |
Optional accessories (2)
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 8TB2106.2010-00 | Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
8B0C0160HC00.000-1: frequently asked questions
When can 8B0C0160HC00.000-1 be shipped?
8B0C0160HC00.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8B0C0160HC00.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8B0C0160HC00.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0C0160HC00.000-1, subject to availability and destination.
