B&R 80CM01401.26-01
Motor cable, length 1.4 m, 5x 0.34 mm²
- MPN
- 80CM01401.26-01
- Category
- Motor cables M12
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80CM01401.26-01?

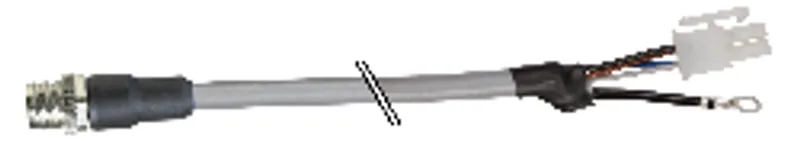

Motor cable, length 1.4 m, 5x 0.34 mm², 4-pin male Molex connector on the motor side, M12 connector on the drive side, can be used in cable drag chains, UL listed
Specifications
General information
| Cable cross section | 5x 0.34 mm² |
Cable construction
| Power lines – Quantity | 5 |
| Power lines – Wire insulation | PVC |
| Power lines – Wire colors | Black, brown, blue, gray, white |
| Power lines – Cross section | 0.34 mm² |
| Power lines – Shield | Yes |
| Power lines – Stranding | Yes |
| Outer jacket – Material | PUR/PVC |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
Electrical properties
| Nominal current | Max. 4 A / contact |
| Connection voltage | Max. 60 V AC/DC |
Ambient conditions
| Temperature – Moving | -10 to 70°C |
| Temperature – Static | -20 to 90°C |
Mechanical properties
| Dimensions – Length | 1.4 m |
| Dimensions – Diameter | 6.4 mm ±0.2 mm |
| Drag chain data – Acceleration | 5 m/s² |
| Drag chain data – Flex cycles | Max. 2.5 million |
| Drag chain data – Velocity | 2 m/s |
| Torque for connections – M12 | 0.6 Nm |
| Bend radius | ≥10x outer diameter |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
80CM01401.26-01: frequently asked questions
When can 80CM01401.26-01 be shipped?
80CM01401.26-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80CM01401.26-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80CM01401.26-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM01401.26-01, subject to availability and destination.
