B&R 7EC020.60-2
RS232 interface (IF1) for programming and configuring using…
- MPN
- 7EC020.60-2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

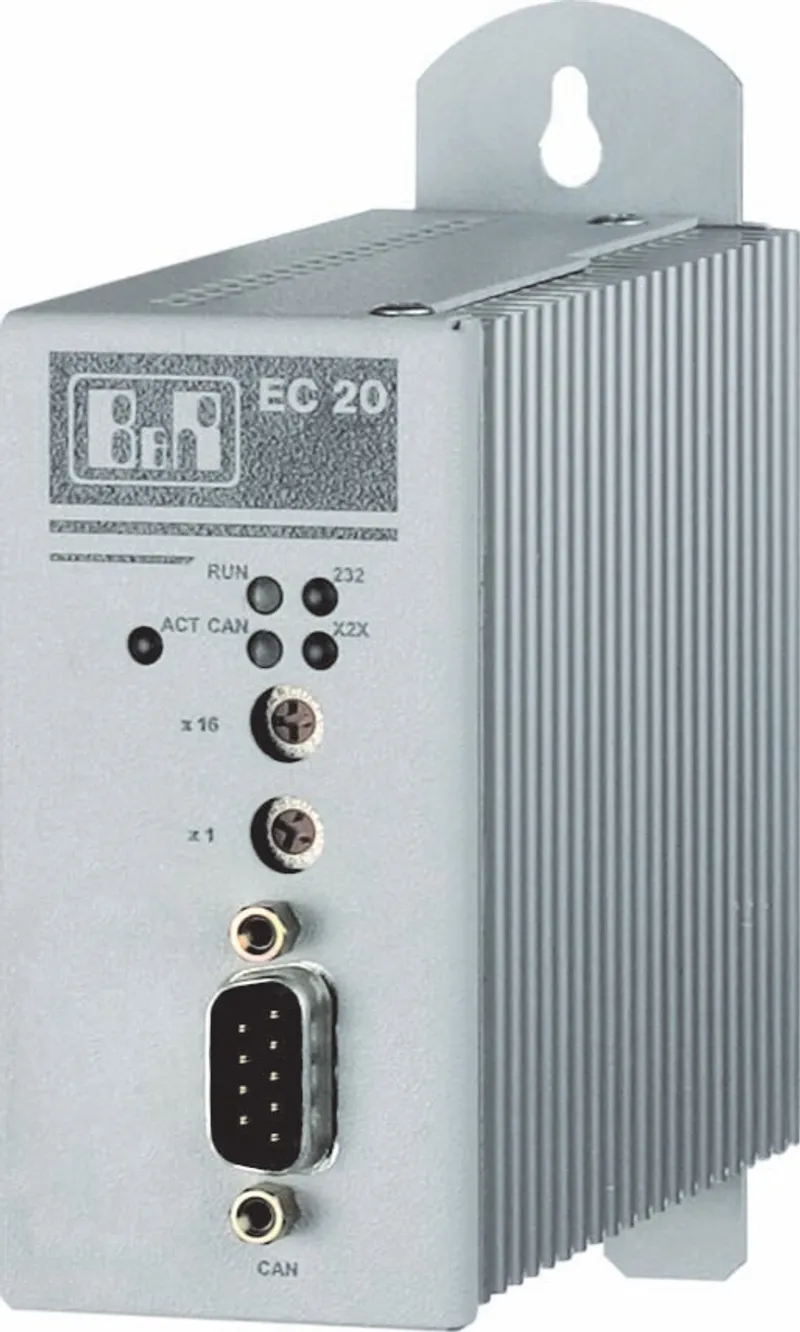

What is the B&R 7EC020.60-2?
RS232 interface (IF1) for programming and configuring using B&R Automation Studio
CAN interface (IF2) for connecting to a CAN network
X2X Link interface (IF4)
Ethernet interface (IF6) for connecting to an Ethernet network
ARNCO (only on 7EC020.61-2)
In addition, a maximum of three digital inputs / outputs are provided. The digital inputs and outputs can be configured individually as input or output. Additional functions such as a counter function with direction switching (stepper motor) or period and gate measurement are integrated.
Embedded controller, x86 100 MHz Intel compatible, 32 MB DRAM, 32 kB SRAM, removable application memory: CompactFlash, 1 CAN interface, 1 X2X Link master interface, 1 Ethernet interface 100BASE-T, 1 RS232 interface, 3 digital mixed channels optionally configurable as inputs or outputs, 24 VDC, 0.5 A, order application memory separately! Order terminal blocks 0TB708 and 0TB704 separately!
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Module type | Embedded controller |
| Power consumption | <6 W |
Controller
| Operating system | AC140 (version E2.82 and later) |
| Processor clock | 100 MHz |
| DRAM | 32 MB |
| SRAM | 32 kB |
Inputs/Outputs
| Module-side connection | 8-pin multipoint connector |
| Configuration of digital inputs/outputs | Individually configurable as inputs or outputs |
Interfaces
| Interface IF1 – Type | RS232 |
| Interface IF1 – Variant | 9-pin male DSUB connector |
| Interface IF1 – Status indicators | 232 LED |
| Interface IF1 – Max. transfer rate | 115.2 kbit/s to 19200 kbit/s at 15 m |
| Interface IF2 – Type | CAN electrically isolated |
| Interface IF2 – Variant | 9-pin male DSUB connector |
| Interface IF2 – Status indicators | CAN LED |
| Interface IF2 – Max. transfer rate | 50 kbit/s at 1000 m to 500 kbit/s at 60 m |
| Interface IF2 – Network-capable | Yes |
| Interface IF2 – Bus terminating resistor | Externally wired |
| Interface IF4 – Type | X2X Link master electrically isolated (note: Application memory must be ordered separately.) |
| Interface IF4 – Variant | 4-pin multipoint connector (note: Application memory must be ordered separately.) |
| Interface IF4 – Status indicators | X2X LED (note: Application memory must be ordered separately.) |
| Interface IF4 – Max. distance | 100 m (note: Application memory must be ordered separately.) |
| Interface IF4 – Network-capable | YES, network topology: Line (note: Application memory must be ordered separately.) |
| Interface IF6 – Type | Ethernet IEEE 802.3 |
| Interface IF6 – Variant | Female RJ45 connector |
| Interface IF6 – Status indicators | ACT LED |
| Interface IF6 – Max. distance | 100 m |
| Interface IF6 – Transfer rate | 10/100 Mbit/s |
Incremental encoders
| Counter size | 16-bit |
| Input frequency | Max. 20 kHz |
| Evaluation | 4x |
| Signal form | Square wave pulse |
| Inputs | A/B on input 1/2, reference pulse on input 3 |
Digital inputs
| Quantity | Max. 3 |
| Input voltage | 24 VDC |
| Circuit | Sink |
| Input delay | <5 µs |
| Electrical isolation | Input - PLC |
Event counters
| Signal form | Square wave pulse |
| Input frequency | Max. 100 kHz |
| Inputs | Counter on input 1 |
| Pulse length | Min. 5 μs |
| Counter size | 32-bit |
Gate time measurement
| Signal form | Square wave pulse |
| Counter frequency | 31.25 kHz/4 MHz internal, max. 100 kHz external |
| Input frequency | Max. 100 kHz |
Period measurement
| Signal form | Square wave pulse |
| Input frequency | Max. 100 kHz |
| Counter frequency | 31.25 kHz/4 MHz internal, max. 100 kHz external |
Digital outputs
| Electrical isolation – Input - PLC | Yes |
| Nominal voltage | 24 VDC |
| Output protection | Shutdown in the event of overcurrent or short circuit |
| Nominal current | 500 mA |
| Switching frequency (resistive load) | Max. 100 Hz |
| Switching delay | Typ. 250 μs |
| Interface type | Max. 3 |
| Type | High-side transistor outputs, readable |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 45°C |
| Temperature – Storage | -25 to 55°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | 43 mm |
| Dimensions – Height | 122 mm |
| Dimensions – Depth | 110 mm |
| Note | Backup battery included in delivery |
Accessories
Required accessories (order separately)
| 5CFCRD.2048-06 | CompactFlash cards — 2 GBSLC flash CompactFlash card |
| 0CFCRD.8192E.02 | CompactFlash cards — CompactFlash 8 GB extended temp. |
| 0CFCRD.4096E.02 | CompactFlash cards — CompactFlash 4096 MB extended temp. |
| 0CFCRD.2048E.02 | CompactFlash cards — CompactFlash 2048 MB extended temp. |
| 0CFCRD.1024E.02 | CompactFlash cards — CompactFlash 1024 MB extended temp. |
| 0CFCRD.0512E.02 | CompactFlash cards — CompactFlash 512 MB extended temp. |
| 0CFCRD.016GE.02 | CompactFlash cards — CompactFlash 16 GB extended temp. |
| 0TB708.91 | Terminal blocks — The single-row 8-pin terminal block TB708/TB1108 is used for making connections on various B&R modules. |
| 5CFCRD.2048-02 | Undefined — CompactFlash 2 GB ATA/IDE SanDisk |
| 5CFCRD.1024-02 | Undefined — CompactFlash 1 GB ATA/IDE SanDisk |
| 5CFCRD.0512-02 | Undefined — CompactFlash 512 MB ATA/IDE SanDisk |
| 5CFCRD.0256-02 | Undefined — CompactFlash 256 MB ATA/IDE SanDisk |
| 5CFCRD.0128-02 | Undefined — CompactFlash 128 MB ATA/IDE SanDisk |
| 5CFCRD.0064-02 | Undefined — CompactFlash 64 MB ATA/IDE SanDisk |
Optional accessories (4)
| 7AC911.9 | Infrastructure components — The AC911 bus connector is used to connect a controller to a CAN network. The terminating resistor is integrated in the bus connector. The… |
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
| 0AC913.92 | Infrastructure components — Bus adapter, CAN, 2 CAN interfaces, including 30 cm attachment cable (DSUB) |
| 0AC912.9 | Infrastructure components — Bus adapter, CAN, 1 CAN interface |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
7EC020.60-2: frequently asked questions
When can 7EC020.60-2 be shipped?
7EC020.60-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7EC020.60-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7EC020.60-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7EC020.60-2, subject to availability and destination.
