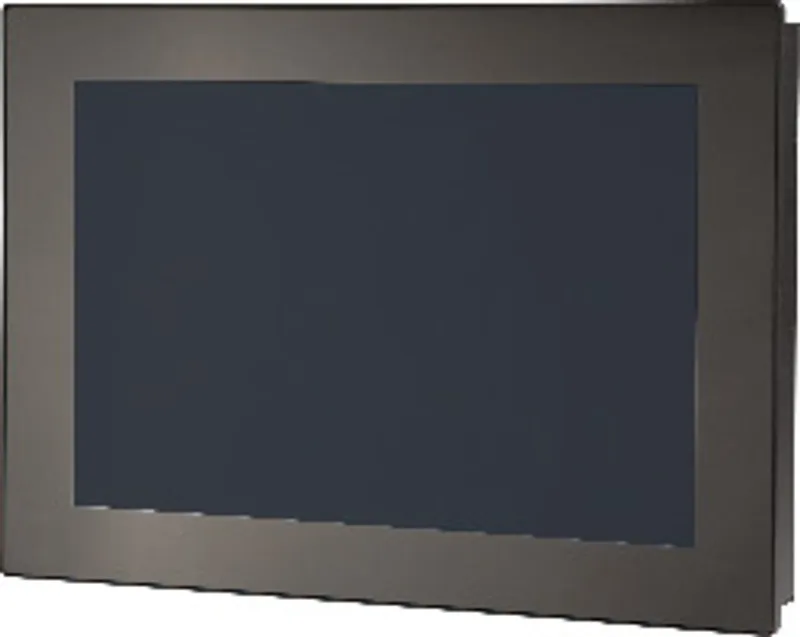

B&R 6PPT50.156B-10A
Power Panel T50, 15.6", glass front (anti-glare)
- MPN
- 6PPT50.156B-10A
- Category
- Power Panel T50
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 6PPT50.156B-10A?
Power Panel T50, 15.6", glass front (anti-glare), 1x Gigabit Ethernet. CPU and memory: 800 MHz dual core (ARM Cortex-A9), 1 GB RAM, 512 MB onboard flash drive. Display and touch screen: 15.6", 1366 x 768 (HD) resolution, projected capacitive touch screen, multi-touch support, anti-glare glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x Ethernet 10/100/1000 Mbit/s, 2x USB 2.0. Client software: Integrated service page, VNC client, embedded web browser.
Specifications
General information
| Support – mapp View | Yes (note: 1) Due to the performance of the Power Panel, the following widget classes are fully supported: A, B) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | Ethernet (Link, Activity, Speed) |
| B&R ID code | 0xF1FD |
| Cooling | Passive |
| Power button | No |
| Reset button | No |
| Buzzer | Yes |
Controller
| Processor – Type | ARM Cortex-A9, dual core |
| Processor – Clock frequency | 800 MHz |
| Processor – L1 cache | 64 kB |
| Processor – L2 cache | 512 kB |
| Operating system | PPT50 system |
| Real-time clock | No |
| Flash | 512 MB |
| Mode/Node switches | No |
| DRAM | 1 GB (64-bit connection) |
Display
| Viewing angles – Horizontal | Direction L / Direction R = Typ. 85° |
| Viewing angles – Vertical | Direction U / Direction D = Typ. 85° |
| Backlight – Type | LED |
| Backlight – Brightness | Typ. 400 cd/m² |
| Backlight – Half-brightness time | 70,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can typically increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | Multi-touch |
| Touch screen – Technology | PCT (projected capacitive touch) |
| Touch screen – Surface | Glass, chemically hardened (6H), anti-glare |
| Type | TFT color |
| Diagonal | 15.6" |
| Colors | 16.7 million (RGB, 8 bits per channel) |
| Resolution | HD, 1366 x 768 pixels |
| Contrast | Typ. 1000:1 |
| Screen rotation | Yes |
Interfaces
| Interface – Physical layer | 10BASE-T / 100BASE-TX / 1000BASE-T |
| Interface – Half-duplex | Yes |
| Interface – Full-duplex | Yes |
| Interface – Autonegotiation | Yes |
| Interface – Auto-MDI/MDIX | Yes |
| Interface – Connection | ETH1 (IF1) |
| Interface – Type | Ethernet |
| Interface – Variant | Shielded RJ45 |
| Interface – Line length | Max. 100 m between 2 stations (segment length) |
| Interface – Max. transfer rate | 10/100/1000 Mbit/s |
| Interface IF3 – Type | USB 2.0 |
| Interface IF3 – Variant | Type A |
| Interface IF3 – Current-carrying capacity | 0.5 A |
| Interface IF4 – Type | USB 2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Current-carrying capacity | 0.5 A |
Electrical properties
| Nominal voltage | 24 VDC |
| Power consumption | Typ. 15.7 W (note: Additional power consumption per USB interface: Max. 2.75 W (depends on the connected USB device)) |
| Max. power consumption | 22.1 W (note: Additional power consumption per USB interface: Max. 2.75 W (depends on the connected USB device)) |
| Fuse | 3 A slow-blow, internal (note: The internal fuse cannot be replaced by the user or reset.) |
| Voltage range | 24 VDC (-25% / +30%) |
| Reverse polarity protection | Yes |
| Electrical isolation | Ethernet (ETH1/IF1) to other interfaces, power supply and ground |
Operating conditions
| Permissible mounting orientations – Standard mounting orientation | Vertical |
| Permissible mounting orientations – Inclination | ±25° |
| Permissible mounting orientations – Rotation | In 90° increments (portrait/landscape) |
| Permissible mounting orientations – All other mounting orientations | With derating: Max. operating temperature minus 5°C |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Front: IP65, Back: IP20 |
Ambient conditions
| Temperature – Operation | -20 to 60°C |
| Temperature – Storage | -20 to 70°C |
| Temperature – Transport | -20 to 70°C |
| Relative humidity | See temperature/humidity diagram. |
Mechanical properties
| Front – Design | Black |
| Dimensions – Width | 414 mm |
| Dimensions – Height | 258.5 mm |
| Dimensions – Depth | 41.7 mm |
| Weight | 3.1 kg |
Accessories
Optional accessories (5)
| 0TB6102.2110-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm² |
| 6ACCRPP2.0001-000 | Other — Installation kit for Power Panel T-Series variants: 9x retaining clips with torque limiting, 1x 2-pin cage clamp terminal block, 1x 2-pin s… |
| 0TB6102.2010-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm² |
| 5MMUSB.4096-01 | USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB… |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6PPT50.156B-10A: frequently asked questions
When can 6PPT50.156B-10A be shipped?
6PPT50.156B-10A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6PPT50.156B-10A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6PPT50.156B-10A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6PPT50.156B-10A, subject to availability and destination.
