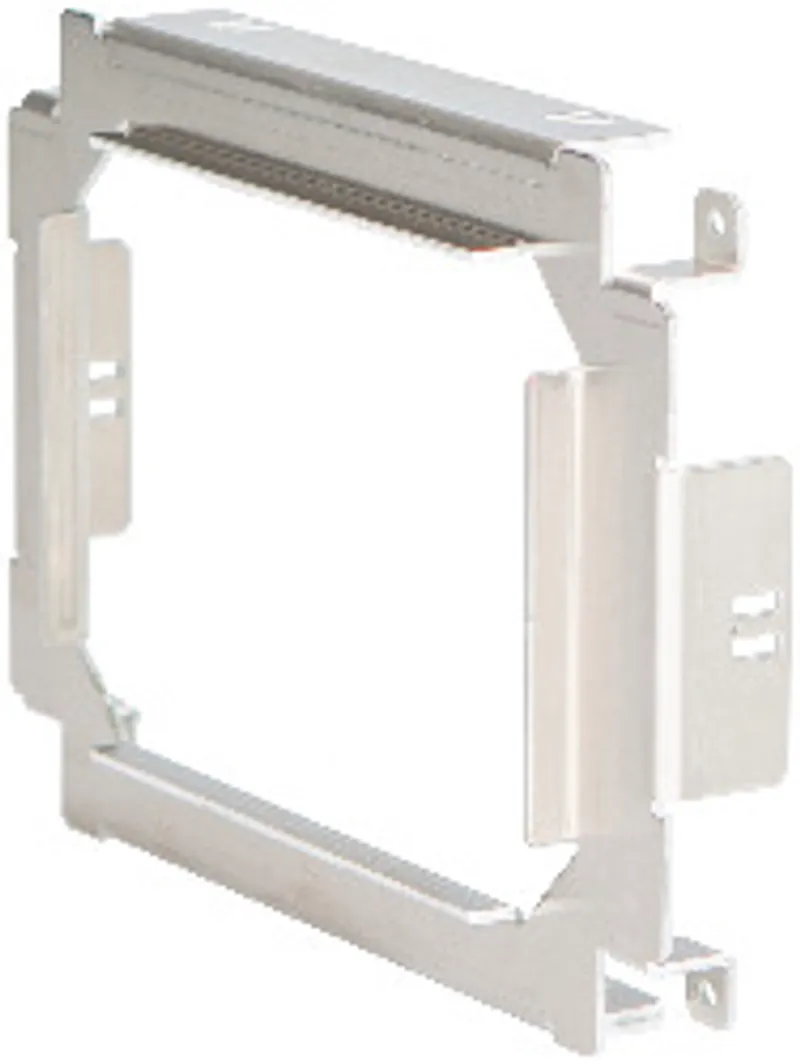

What is the B&R 6PM.AC.PAN-070?
T50 mobile 7 inch, panel installation set
Specifications
General information
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV4 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
Operating conditions
| Degree of protection per EN 60529 | IP66Installation and wiring")."> (note: Applies to sealing the control cabinet installation cutout when the specified installation instructions are observed (see chapter) |
Mechanical properties
| Dimensions – Width | 196 mm |
| Dimensions – Length | 139 mm |
| Dimensions – Height | 31 mm |
| Weight | 119 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6PM.AC.PAN-070: frequently asked questions
When can 6PM.AC.PAN-070 be shipped?
6PM.AC.PAN-070 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6PM.AC.PAN-070 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6PM.AC.PAN-070 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6PM.AC.PAN-070, subject to availability and destination.
