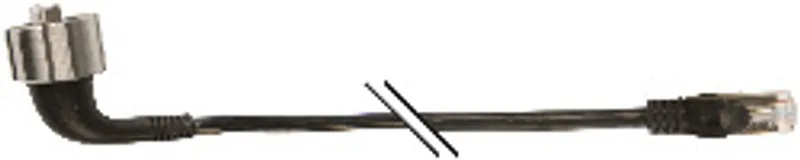

B&R 6CAPFT.0050-01
FT50/FT51 PoE cable - 5 m - 90° M22/RJ45
- MPN
- 6CAPFT.0050-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 6CAPFT.0050-01?
FT50/FT51 PoE cable - 5 m - 90° M22/RJ45
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Cable construction
| Wires – Shield | FTP |
| Wire cross section | 24/26 AWG |
| Type | Cat 5e |
Connector
| Type | 2x RJ45 (male) |
| Mating cycles | 1000 cycles at 25°C |
| Contacts | 8 |
| Mechanical protection | 50 µm, gold-plated |
Electrical properties
| Conductor resistance | <125 Ω/km at 20°C |
Operating conditions
| Degree of protection | IP67 (panel connection); IP20 (PoE injector) |
Ambient conditions
| Temperature – Operation | -20°C to 70°C |
| Temperature – Storage | -20°C to 70°C |
Mechanical properties
| Dimensions – Length | 5 m |
| Bend radius – Single bend | 5x cable diameter |
| Bend radius – Moving | 10x cable diameter |
| Material | PVC black |
| Weight | 500 g |
| Torque for mounting screw | 3.0 Nm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6CAPFT.0050-01: frequently asked questions
When can 6CAPFT.0050-01 be shipped?
6CAPFT.0050-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6CAPFT.0050-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6CAPFT.0050-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6CAPFT.0050-01, subject to availability and destination.
