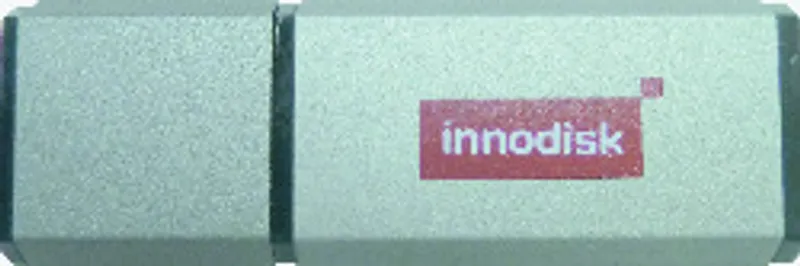

B&R 5MMUSB.032G-02
USB 3.0 flash drive 32 GB MLC, Only for HMI products
- MPN
- 5MMUSB.032G-02
- Category
- USB accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5MMUSB.032G-02?
USB 3.0 flash drive 32 GB MLC - Only for HMI products
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Capacity | 32 GB |
| LEDs | 1 LED (green) (note: Indicates data transfer (transmitting and receiving).) |
| MTBF | >3,000,000 hours |
| Servicing | None |
| Default file system | None |
Interfaces
| USB – Type | USB 3.0 |
| USB – Connection | To any USB type A interface |
| USB – Transfer rate | High speed (480 Mbit/s) to SuperSpeed (4 Gbit/s) |
| USB – Sequential reading | Max. 100 MB/s |
| USB – Sequential writing | Max. 50 MB/s |
Endurance
| MLC flash memory | Yes |
| Data retention | 10 years |
| Data reliability | <1 unrecoverable error per 10 16 bits read |
| Mating cycles | >1500 |
Electrical properties
| Power consumption | Max. 0.66 W (In sleep mode: Max. 0.34 W) |
Ambient conditions
| Temperature – Operation | 0 to 70°C (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Storage | -55 to 95°C |
| Temperature – Transport | -55 to 95°C |
| Relative humidity – Operation | 10 to 95%, non-condensing |
| Relative humidity – Storage | 10 to 95%, non-condensing |
| Relative humidity – Transport | 10 to 95%, non-condensing |
| Vibration – Operation | 7 to 2000 Hz: 20 g |
| Vibration – Storage | 7 to 2000 Hz: 20 g |
| Vibration – Transport | 7 to 2000 Hz: 20 g |
| Shock – Operation | Max. 1500 g, 0.5 ms |
| Shock – Storage | Max. 1500 g, 0.5 ms |
| Shock – Transport | Max. 1500 g, 0.5 ms |
Mechanical properties
| Dimensions – Width | 16.6 mm |
| Dimensions – Length | 48.6 mm |
| Dimensions – Height | 7.6 mm |
| Weight | Approx. 10 g |
