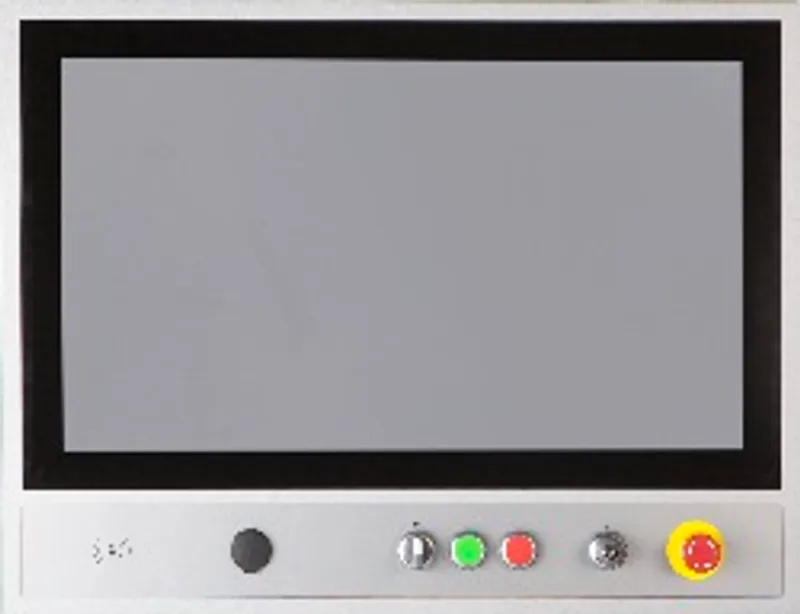

B&R 5AP99D.240C-00
Display unit for AP99D
- MPN
- 5AP99D.240C-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AP99D.240C-00?
Display unit for AP99D
24.0" TFT FHD color display
Multi-touch (PCT)
Front USB interface
Push buttons, selector switch, key switch, emergency stop
RFID read/write unit
Flexible, hanging swing arm installation
IP65 protection
Automation Panel 24.0" Full HD TFT - 1920 x 1080 pixels (16:9) - Multi-touch (projected capacitive) - Landscape format - 2 pushbuttons - RFID read/write unit - Emergency switching-off device - Selector switch - Key switch - IP65 protection - For swing arm mounting - Flange on the top
Specifications
General information
| B&R ID code | 0xE3A9 |
Display
| Viewing angles – Horizontal | Direction R = 89° / Direction L = 89° |
| Viewing angles – Vertical | Direction U = 89° / Direction D = 89° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 30 to 300 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | 3M |
| Touch screen – Technology | Projected capacitive touch (PCT) |
| Touch screen – Controller | 3M |
| Touch screen – Transmittance | See section "Touch screen" in appendix A. |
| Type | TFT color |
| Diagonal | 24.0" |
| Colors | 16.7 million |
| Resolution | FHD, 1920 x 1080 pixels |
| Contrast | 5000:1 |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 500 mA |
| RFID read/write transponder unit – Type | For I-Code SLI transponder, amplitude modulation and MIFARE Classic |
| RFID read/write transponder unit – Frequency | 13.56 MHz |
| RFID read/write transponder unit – Standard | ISO 15693, MIFARE Classic |
| RFID read/write transponder unit – Read/Write range in air | Approx. 1 cm |
FeaturesFeatures" in "Appendix A" in the user's manual.">
| Pushbuttons – Quantity | 2 (green, red) |
| Pushbuttons – Type | RAFIX 22 FS+, 1.30.270.021/2500 (green), 1.30.270.021/2300 (red) |
| Pushbuttons – Contact element | Momentary |
| Selector switch – Quantity | 1 |
| Selector switch – Type | RAFIX 22 FS+, 1.30.272.102/2200 |
| Selector switch – Contact element | Maintained |
| Key switch – Quantity | 1 |
| Key switch – Type | RAFIX 22 FS 1.30.255.222/0000 |
| Key switch – Contact element | Maintained |
| Emergency switch-off – Quantity | 1 |
| Emergency switch-off – Type | RAFIX 22 FS+, Plus 1, 1.30.273.502/0300 |
| Emergency switch-off – Contact element | Maintained |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP65 (note: Only when all covers are installed and the device is properly mounted on a swing arm.) |
Mechanical properties
| Housing – Material | Aluminum, coated |
| Housing – Coating | White aluminum |
| Front – Frame | Aluminum, coated |
| Front – Design | Black |
| Dimensions – Width | 626.5 mm |
| Dimensions – Height | 475 mm |
| Flange output | Top |
| Weight | 13250 g |
Accessories
Required accessories (order separately)
| 0TB1210.3100 | Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa… |
Optional accessories (1)
| 5AC903.HDL0-08 | Handles — Handles for 5AP99D.240C-00, 5AP99D.240C-01; For comfortable, ergonomic operation Handles can be installed on the side of the display unit t… |
