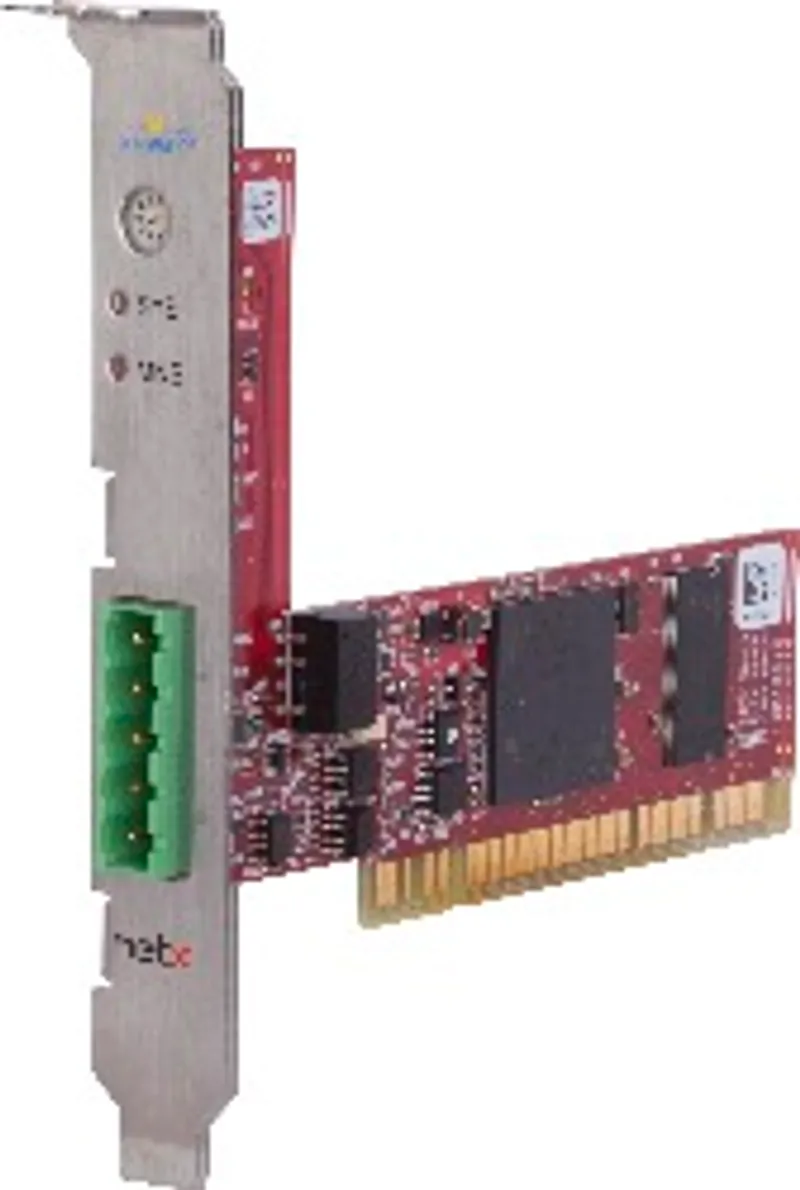

B&R 5ACPCI.XDNM-00

The is equipped with a DeviceNet master…

MPN: 5ACPCI.XDNM-00
Category: PCI communication modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5ACPCI.XDNM-00?

The 5ACPCI.XDNM-00 is equipped with a DeviceNet master interface and can therefore be used as a master in a DeviceNet network. Data is exchanged via the dual port memory.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xB1D3
Configuration software	Automation Studio (version 3.0.81.xx or later) / SYCONnet

Controller

Processor	netX 100
Dual-port memory	64 kB

Fieldbus

Type	DeviceNet master
Variant	5-pin, male
Transfer rate	Max. 500 kbaud
Slaves	Max. 63
Cyclic data	Max. 7168, 255 bytes/slave
Acyclic data	Get/Set_Attribute max. 240 bytes/request
I/O connections	Poll, change of state, cyclic, bit strobe
Functions	UCMM supported

Electrical properties

Nominal voltage	+3.3 V ±5%
Nominal current	650 mA

Ambient conditions

Temperature – Operation

0 to 55°C

Mechanical properties

Dimensions – Width	120 mm
Dimensions – Height	73.2 mm
Dimensions – Depth	18.5 mm
Installation in – B&R Automation PC	Yes
Installation in – B&R Panel PC	Yes
Installation in – Desktop PC	Yes
Slot	Standard PCI half-size module, plug and play
