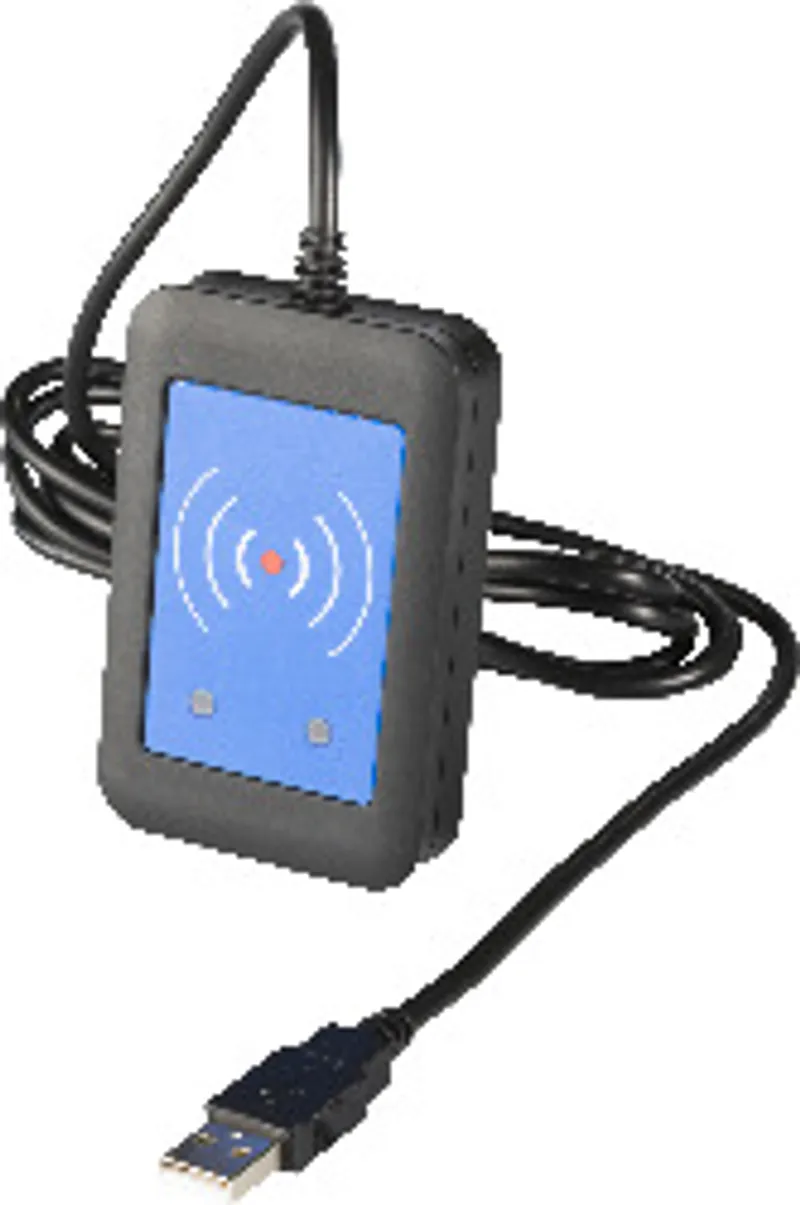

B&R 5ACCRFID.RW00-000
R/W transponder 125 kHz / 13.56 MHz desktop
- MPN
- 5ACCRFID.RW00-000
- Category
- Other
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCRFID.RW00-000?
R/W transponder 125 kHz / 13.56 MHz desktop
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
Interfaces
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) |
| RFID read/write transponder unit – Variant | MIFARE DESFire 4k (13.56 MHz) and EM4450 (125 kHz) |
| RFID read/write transponder unit – Type | Rev. D0 and later: ELATEC TWN4 MultiTech 2 LF HF; Up to Rev. C0: ELATEC TWN4 MultiTech Nano |
| RFID read/write transponder unit – Standard | ISO14443A/B, ISO15693, ISO18092 / ECMA-340 (NFC) |
| RFID read/write transponder unit – Read/Write range in air | Up to 100 mm (depends on transponder) |
Electrical properties
| Nominal voltage | 4.3 to 5.5 V via USB |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | -25 to 80°C, non-condensing |
| Temperature – Storage | -45 to 85°C, non-condensing |
| Temperature – Transport | -45 to 85°C, non-condensing |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Housing – Material | ABS UL-94 (black) |
| Weight | Approx. 155 g (with cable) |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5ACCRFID.RW00-000: frequently asked questions
When can 5ACCRFID.RW00-000 be shipped?
5ACCRFID.RW00-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCRFID.RW00-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCRFID.RW00-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCRFID.RW00-000, subject to availability and destination.
