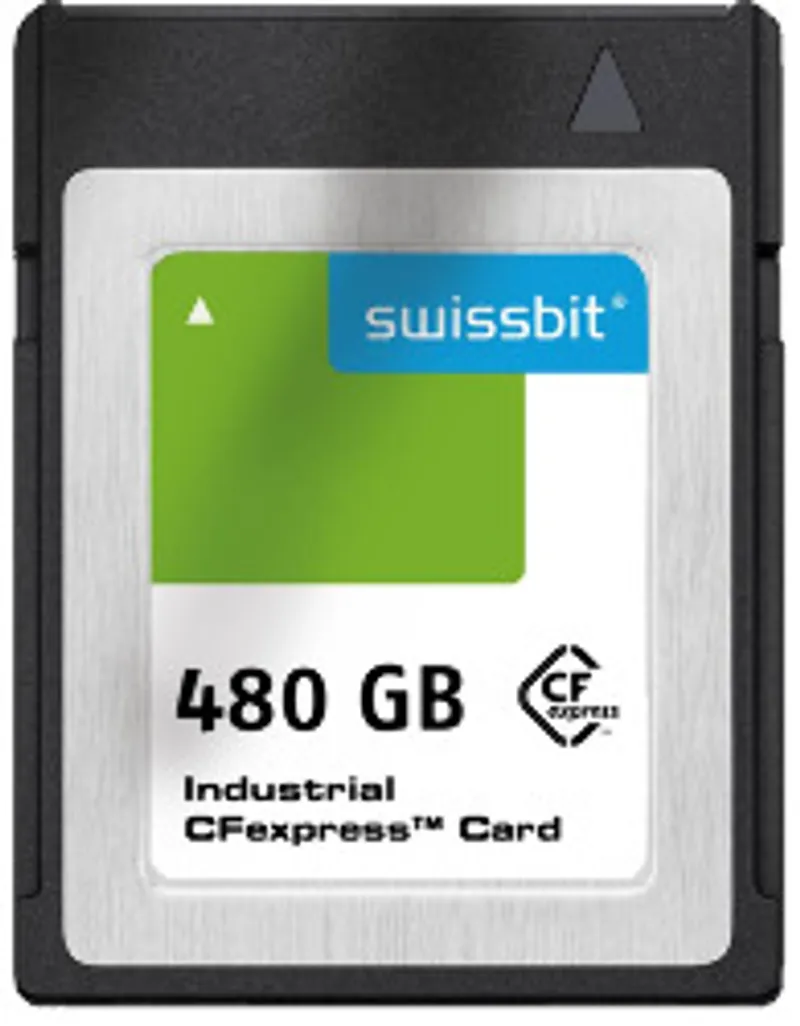

B&R 5ACCRCFX.480G-20
HMI CFexpress 480 GB TLC
- MPN
- 5ACCRCFX.480G-20
- Category
- CFexpress cards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCRCFX.480G-20?
HMI CFexpress 480 GB TLC
Specifications
General information
| Continuous reading – Maximum | Up to 1,618 MB/s |
| Continuous writing – Maximum | Up to 792 MB/s |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Capacity | 480 GB |
| Data retention | 10 years (note: Per JEDEC (JESD47), EOL conditions are not permitted to be reached before 18 months. A higher average daily write workload reduces the expected service life and data retention of the data storage medium.) |
| Data reliability | Max. 1 unrecoverable error per 10 16 bits read |
| Lifetime monitoring | Yes |
| MTBF | Min. 3,000,000 h |
| Type | Type B |
| Supported operating modes | NVMe 1.3 (PCIe Gen3 x2) |
Endurance
| Data volume – Client workload | 967 TBW (note: TBW = Terabytes written Client workload per JEDEC JESD219 standard.) |
| 3D TLC flash memory | Yes |
| Wear leveling | Dynamic and static |
| Error-correcting code (ECC) | Yes |
| S.M.A.R.T. support | Yes |
| Storage health data support | Yes, starting with AR 6.00 |
| Mating cycles | Up to 12,000 |
Support
| Operating systems – Windows 11 IoT Enterprise LTSC 64-bit | Yes |
| Operating systems – Windows 10 IoT Enterprise LTSC 64-bit | Yes |
| Operating systems – Linux for B&R 12 | Yes |
| Software – PVI | 6.0 |
| Hardware | APC4100, xPC3200, xPC2300 |
Electrical properties
| Power consumption | Max. 2.36 W |
Ambient conditions
| Temperature – Operation | -40 to 85°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | Up to 90% at 85°C for 96 h, non-condensing |
| Relative humidity – Storage | Up to 90% at 85°C for 96 h, non-condensing |
| Relative humidity – Transport | Up to 90% at 85°C for 96 h, non-condensing |
| Vibration – Storage | 10 to 2,000 Hz: 20 g peak |
| Vibration – Transport | 10 to 2,000 Hz: 20 g peak |
| Shock – Operation | 500 g peak, 1 ms |
| Shock – Storage | 500 g peak, 1 ms |
| Shock – Transport | 500 g peak, 1 ms |
Mechanical properties
| Dimensions – Width | 29.8 mm |
| Dimensions – Length | 38.5 mm |
| Dimensions – Depth | 3.8 mm |
| Weight | Approx. 10 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5ACCRCFX.480G-20: frequently asked questions
When can 5ACCRCFX.480G-20 be shipped?
5ACCRCFX.480G-20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCRCFX.480G-20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCRCFX.480G-20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCRCFX.480G-20, subject to availability and destination.
