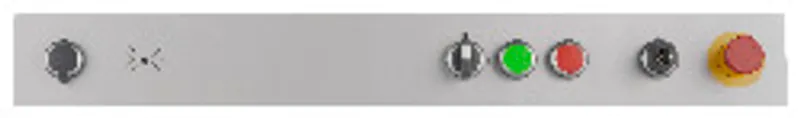

B&R 5ACCKP03.240C-000
AP5000 swing arm expansion option, Expansion unit
- MPN
- 5ACCKP03.240C-000
- Category
- Expansion units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCKP03.240C-000?
AP5000 swing arm expansion option - Expansion unit - 1x RFID read/write unit - 1x emergency stop - 2x pushbutton (red and green) - 1x selector switch - 1x key switch - 1x front USB interface - For panel 5AP5230.240C-000
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – FCC | Contains FCC ID: 2ADFV-RFM-2-NF |
| Certifications – IC | Contains IC: 12444A-RFM2NF |
Interfaces
| USB – Quantity | 1 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | 500 mA |
| RFID read/write transponder unit – Variant | RFM-2-NF |
| RFID read/write transponder unit – Type | ELATEC TWN4 MultiTech Nano |
| RFID read/write transponder unit – Frequency | Short range device (SRD) 13.56 MHz |
| RFID read/write transponder unit – Output power | Max. 8.13 dB µA/m @10 m |
| RFID read/write transponder unit – Standard | ISO14443A/B, ISO15693, ISO18092 / ECMA-340 (NFC) |
| RFID read/write transponder unit – Read/Write range in air | Up to 2 cm (depends on transponder) |
Features
| Pushbuttons – Quantity | 2 (green, red) |
| Pushbuttons – Type | RAFIX 22 FS+, 1.30.270.021/2500 (green), 1.30.270.021/2300 (red) |
| Pushbuttons – Contact element | Momentary |
| Selector switch – Quantity | 1 |
| Selector switch – Type | RAFIX 22 FS+, 1.30.272.102/2200 |
| Selector switch – Contact element | Maintained |
| Key switch – Quantity | 1 |
| Key switch – Type | RAFIX 22 FS 1.30.275.222/0000 |
| Key switch – Contact element | Maintained |
| Emergency stop – Quantity | 1 |
| Emergency stop – Type | RAFIX 22 FS+, 1.30.273.511/0300 |
| Emergency stop – Contact element | Maintained |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Material | Steel sheet |
| Weight | 1100 g |
