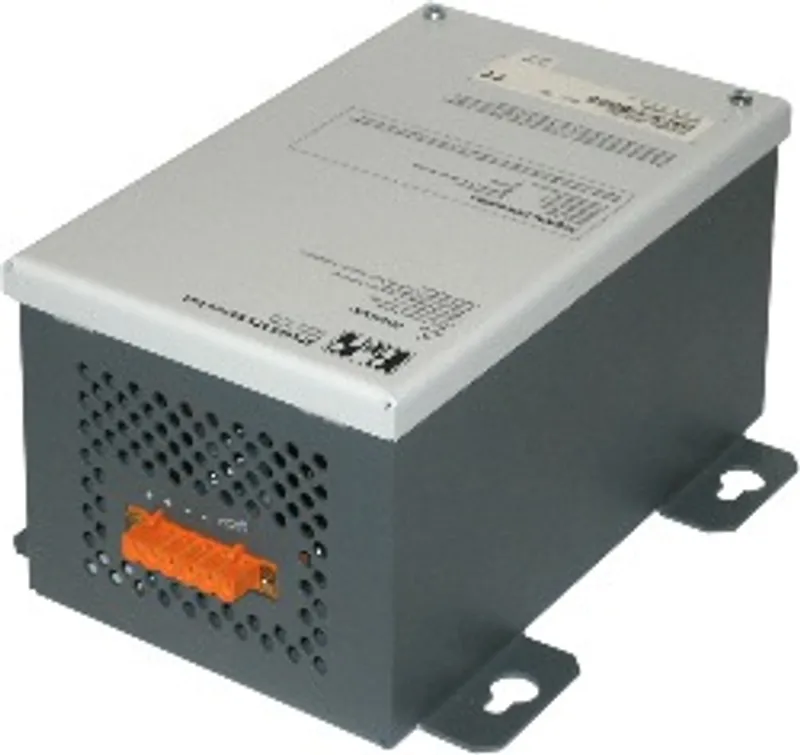

B&R 5AC600.UPSB-00

Battery unit 5 Ah, for APC620, APC810 or PPC800 UPS.

MPN: 5AC600.UPSB-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AC600.UPSB-00?

Battery unit 5 Ah, for APC620, APC810 or PPC800 UPS.

Specifications

General information

Battery – Type	Enersys Cyclon 12 V 5 Ah (6 pcs. connected in series)
Battery – Service life	Up to 15 years at 20°C / 10 years at 25°C (note: Depends on the charging and discharging cycles (up to 80% battery capacity).)
Battery – Variant	Single cell (VRLA)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Temperature sensor	NTC resistance
Service interval during storage	Charge 1 time every 6 months
Charge duration when battery low	Typ. 15 hours

Electrical properties

Nominal voltage	12 V
Battery current	Max. 8 A
Capacity	5 Ah
Fuse	YesMaintenance/Servicing" in the APC810 and PPC800 user's manuals."> (note: 25 A fuse. Replacement fuses can be reordered separately if needed.)
Deep discharge voltage	10 V

Ambient conditions

Temperature – Charging mode	-30 to 60°C
Temperature – Operation	-40 to 80°C
Temperature – Storage	-65 to 80°C
Temperature – Transport	-65 to 80°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Elevation – Operation	Max. 3000 m

Mechanical properties

Dimensions – Width	104 mm (note: Dimension without mounting brackets.)
Dimensions – Length	170.5 mm
Dimensions – Height	87.5 mm
Weight	Approx. 3200 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 5AC600.UPSB-00ZIP · 1,011 KB · 1.10 (12/02/2015)
