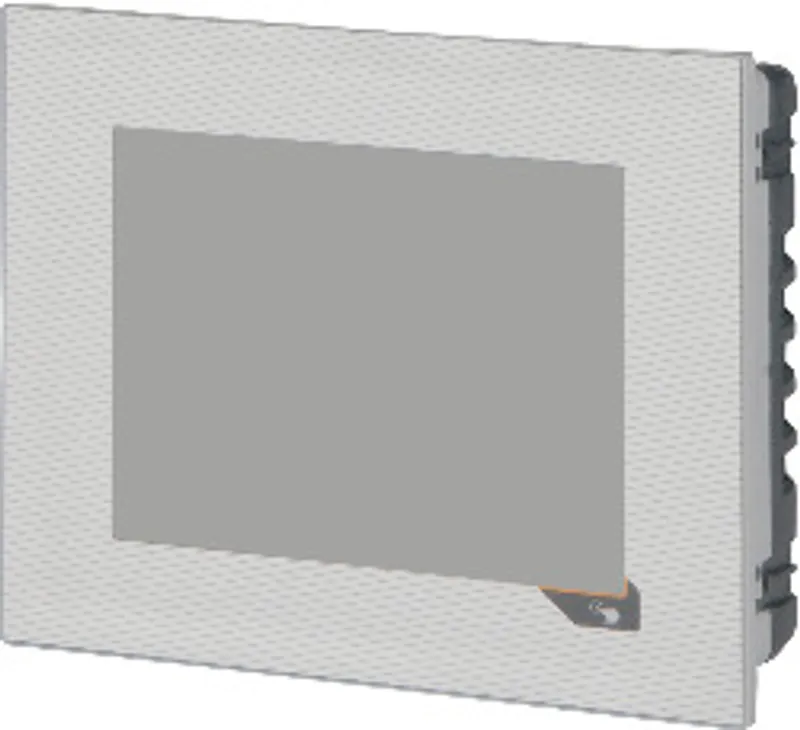

B&R 4PPC70.0573-22W
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Power Panel C70 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.6 kg |
Shipping & availability
When can 4PPC70.0573-22W be shipped?
4PPC70.0573-22W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4PPC70.0573-22W in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4PPC70.0573-22W and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PPC70.0573-22W, subject to availability and destination.
Power Panel C70, 5.7", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS232. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive. Display and touch screen: 5.7", 640 x 480 (VGA) resolution, analog resistive touch screen, landscape format, aluminum white pinstripe. Interfaces: 1x POWERLINK, 1x Ethernet 10/100 Mbit/s, 1x X2X Link, 2x USB 2.0, 1x CAN bus, 1x RS232.
Specifications
Specifications
| B&R ID code | 0xE55F |
| Automation Studio | 4.1.4.375 and later |
| Automation Runtime | K4.08 and later |
| Support for X20SLX modules | Rev. B4 and later |
| Cooling | Fanless |
| Power button | No |
| Reset button | Yes |
| Status indicators | Supply voltage OK, operating state, module status, POWERLINK, Ethernet, CAN Rx/Tx, RS232 Rx/Tx |
| Buzzer | Yes |
| Controller redundancy | No |
| ACOPOS support | Yes |
| Visual Components support | Yes |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Evaluation ongoing |
| UL | cULus E115267 Industrial control equipment |
| Bootloader | Automation Runtime AR 4.08 |
| Real-time clock | Nonvolatile, resolution 1 s, -10 to 10 ppm accuracy at 25°C |
| FPU | Yes |
| Type | RS232 |
| Clock frequency | 333 MHz (compatible) |
| Data code | 24 kB |
| Program code | 32 kB |
| L2 cache | 512 kB |
| Mode/Node switches | No |
| Remanent variables | 32 kB FRAM, retention >10 years |
| DRAM | 256 MB |
| Shortest task class cycle time | 0.4 ms |
| Typical instruction cycle time | 0.01 µs |
| Data retention | 10 years |
| Guaranteed | 40 TB |
| Results for 5 years | 21.9 GB/day |
| Guaranteed erase/write cycles | 20,000 |
| Error-correcting code (ECC) | Yes |
| Storage health data support | Yes, starting with AR 4.90 and hardware revision F0 |
| Temperature cutoff | Yes, at >88°C |
| Diagonal | 5.7" |
| Colors | 262,144 (RGB, 6 bits per channel) |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | Typ. 850:1 |
| Horizontal | Direction L / Direction R = Typ. 80° |
| Vertical | Direction U / Direction D = Typ. 70° |
| Brightness | Typ. 400 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog resistive |
| Controller | B&R, serial, 12-bit |
| Transmittance | 80% ±3% |
| Screen rotation | Yes, using Visual Components |
| Fieldbus | X2X Link master |
| Variant | 3 pins of the 6-pin multipoint connector |
| Line length | Max. 100 m between 2 nodes (segment length) |
| Max. transfer rate | 10/100 Mbit/s |
| Physical layer | 10BASE-T/100BASE-TX |
| Half-duplex | Yes |
| Full-duplex | Yes |
| Autonegotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Current-carrying capacity | ≥Rev. E0: 0.20 A <Rev. E0: 0.10 A |
| Max. distance | 900 m |
| Bus length ≤25 m | 1 Mbit/s |
| Bus length ≤60 m | 500 kbit/s |
| Bus length ≤200 m | 250 kbit/s |
| Bus length ≤1000 m | 50 kbit/s |
| Terminating resistor | Hardware revisions ≥G0: Integrated, can be switched on using software Hardware revision <G0: Must be wired externally |
| Transfer rate | Max. 115.2 kbit/s |
| Nominal voltage | 24 VDC -15% / +20% |
| Max. power consumption | 14.4 W |
| Reverse polarity protection | Yes |
| Electrical isolation | IF1, IF2 and IF5 isolated from each other, from other interfaces and from the base device |
| Standard mounting orientation | Vertical |
| Inclination | ±25° |
| Rotation | In 90° increments (portrait/landscape) |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | Front: IP65, Back: IP20 |
| Degree of protection per UL 50 | Front: Type 4X indoor use only |
| Operation | 0 to 50°C |
| Storage | -20 to 70°C |
| Transport | -20 to 70°C |
| Relative humidity | See temperature/humidity diagram. |
| Design | Aluminum white pinstripe |
| Width | 172 mm |
| Height | 140 mm |
| Depth | 51 mm |
| Weight | 0.6 kg |
