B&R 4MP181.0843-03
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.19 kg |
Shipping & availability
When can 4MP181.0843-03 be shipped?
4MP181.0843-03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4MP181.0843-03 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4MP181.0843-03 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4MP181.0843-03, subject to availability and destination.

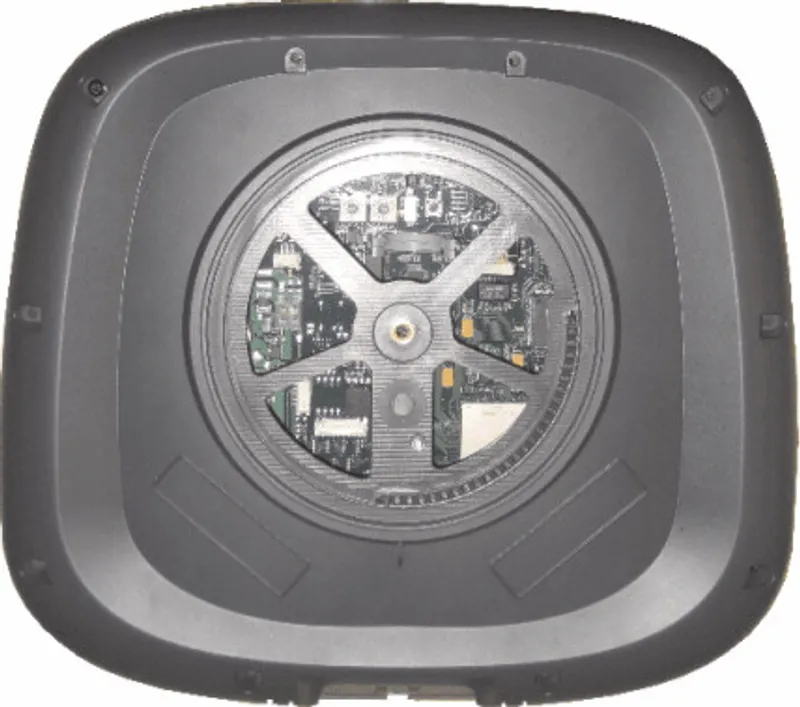

Mobile Panel MP181 control device, 8.4" VGA color TFT display with touch screen (resistive), 19 system keys, key switch and emergency switch-off. 64 MB SDRAM, CompactFlash slot (type I), ETH 10/100, USB 1.1, 24 VDC. Order handle and cables separately.
Specifications
Specifications
| Type | USB 1.1 |
| Service life | >1,000,000 actuations at 1 ±0.3 N to 3 ±0.3 N actuating force |
| Removable | - |
| Variant | Type A |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Bootloader | Automation Runtime |
| Clock frequency | 266 MHz |
| L1 cache | 16 kB |
| L2 cache | No |
| Floating point unit (FPU) | Yes |
| MMX-compatible | Yes |
| Mode/Node switches | 2, 16 positions each (back) |
| Watchdog | No |
| Accuracy | Typ. 20 ppm (1.7 seconds) per day |
| Battery-backed | - |
| Controller | - |
| Memory | 4 MB shared memory (reserved by main memory) |
| Size | - |
| Diagonal | 8.4" (213.4 mm) |
| Colors | 256 |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 250:1 |
| Horizontal | Direction R / Direction L = 55° |
| Vertical | Direction U = 55° / Direction D = 40° |
| Brightness | 120 cd/m² |
| Half-brightness time | 50,000 h |
| Transmittance | Up to 78% |
| Anti-glare coating | - |
| Technology | Analog, resistive |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 100 Mbit/s |
| Connection | - |
| Quantity | - |
| Transfer rate | 10/100 Mbit/s |
| Function keys | No |
| Soft keys | No |
| System keys | Numeric keys 4 system keys |
| 3-axis joystick | No |
| Electronic handwheel | No |
| Illuminated pushbutton | No |
| Emergency switch-off | 2 normally closed contacts, right position |
| Enable switch | 3-position, 2-channel, position on front of handle |
| Override potentiometer | No |
| Key switch | Yes |
| LEDs | No |
| Nominal voltage | 24 VDC ±25% (integrated reverse polarity protection) |
| Inrush current | Max. 20 A for ca. 1 ms |
| Power consumption | Typ. approx. 8 W, max. 10 W |
| Galvanic isolation | No |
| Drop height | 1 m to industrial floor |
| Flame-retardant | UL 94 V-0 |
| Degree of protection per EN 60529 | IP54 protected against dust and splashed water (only with handle 4MPHDL.0000-00) |
| Operation | Max. 2000 m |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Coating | Soft paint, similar to RAL 7016 |
| Design | Gray |
| Light background color | Similar to Pantone 427CV |
| Dark gray keys color | Similar to Pantone 431CV |
| Orange keys color | Similar to Pantone 151CV |
| Gasket | Flat gasket around display front |
| Width | 306.6 mm |
| Height | 76 mm |
| Depth | 270.6 mm |
| Weight | Approx. 1900 g |
