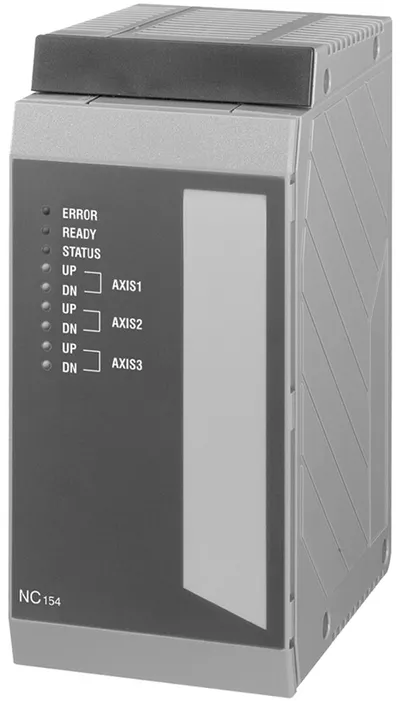

B&R 3NC154.6

2005 positioning module 3 axes

MPN: 3NC154.6

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3NC154.6?

2005 positioning module 3 axes, applies to each of the 3 axes: input for incremental encoder 5 V input frequency 150 kHz input for SSI absolute encoder analog output +/-10 V, 12-bit encoder power supply 5 VDC or 24 VDC 4 digital inputs 24 VDC, sink trigger input 24 VDC, sink 1 relay output 24 VAC / 24 VDC, 1 A Order 12-pin terminal block separately!

Specifications

General information

Certifications – CE	Yes
Certifications – UL	cULus E115267; Industrial control equipment
