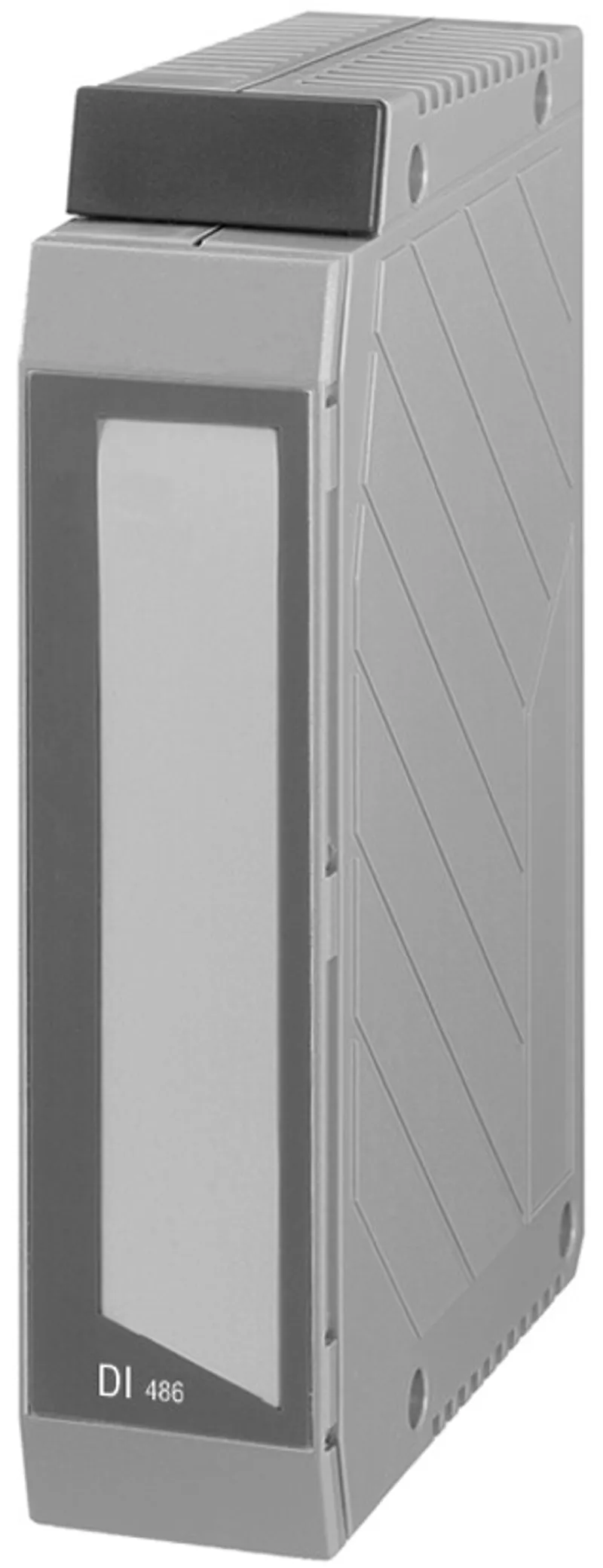

B&R 3DI486.6
I/O module, 32 digital inputs 24 VDC in 2 groups
- MPN
- 3DI486.6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3DI486.6?
2005 digital input module, 32 inputs 24 VDC, 1 ms, sink/source, 2 electrically isolated input groups, order 2x TB718 terminal blocks separately!
Specifications
Short description
| I/O module | 32 digital inputs 24 VDC in 2 groups |
General information
| Diagnostics – I/O power supply | Yes, using LED status indicator and software |
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 1.2 W |
| Power consumption – Total | 1.2 W |
| Electrical isolation – Group - Group | Yes |
| Electrical isolation – Channel - Channel | No (same group) |
| Electrical isolation – Channel - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | I/O function per channel, I/O power supply per input group |
Digital inputs
| Input filter – Hardware | ≤1 ms |
| Input filter – Software | - |
| Nominal voltage | 24 VDC |
| Input circuit | Sink or source |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | Order 2x TB718 terminal blocks separately |
Accessories
Required accessories (order separately)
| 7TB718.91 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB718.9 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3DI486.6: frequently asked questions
When can 3DI486.6 be shipped?
3DI486.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3DI486.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3DI486.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DI486.6, subject to availability and destination.
