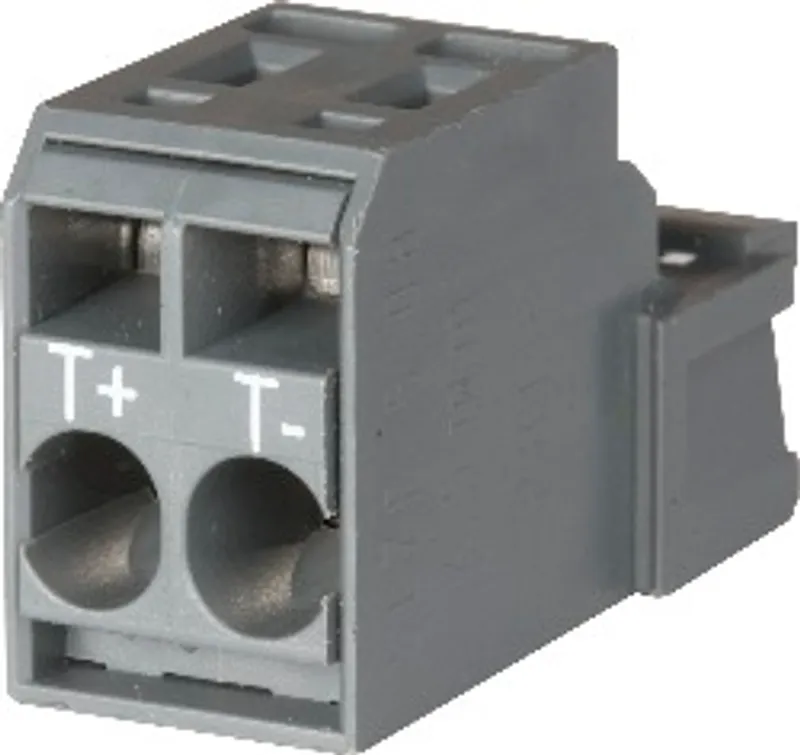

B&R 0TB2102.4122

Accessory terminal block, 2-pin, AX2

MPN: 0TB2102.4122

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 0TB2102.4122?

Accessory terminal block, 2-pin, AX2, cage clamp terminal block 2.5 mm²

Specifications

Terminal block

Connection cross section – AWG wire	26 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 2.50 mm²
Connection cross section – With wire end sleeve	0.20 to 2.50 mm²
Note	Nominal data per UL
Number of pins	2
Type of terminal block	Cage clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	AX2
Pitch	5.08 mm

Electrical properties

Nominal voltage	300 V
Nominal current	15 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤5 mΩ

0TB2102.4122: frequently asked questions

When can 0TB2102.4122 be shipped?

0TB2102.4122 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB2102.4122 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB2102.4122 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB2102.4122, subject to availability and destination.
