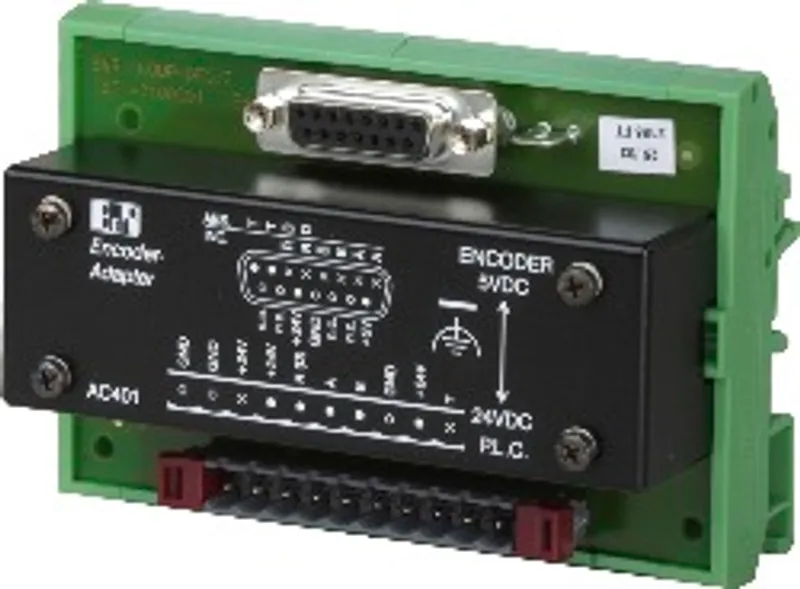

B&R 0AC401.9
The adapter is as a converter for 5 V encoders. The 5…
- MPN
- 0AC401.9
- Category
- Infrastructure components
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0AC401.9?
The adapter is used as a converter for 5 V encoders. The 5 V differential signals delivered by the encoder are converted to 24 V signals. Absolute and incremental encoders can be used.
Specifications
General information
| Certifications – UL | cULus E115267; Industrial control equipment |
| Input frequency | 100 kHz |
| Power supply | 24 VDC |
| Power consumption | Typ. 6.0 W @ 24 V, the encoder supply (+5 V) draws 500 mA |
| Overvoltage protection | External fuse specified at 10 AT |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -20 to 70°C |
| Relative humidity – Operation | 0 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 77 mm |
| Dimensions – Height | 112.5 mm |
| Dimensions – Depth | 58 mm |
| Installation | Top-hat rail installation |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
0AC401.9: frequently asked questions
When can 0AC401.9 be shipped?
0AC401.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0AC401.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0AC401.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0AC401.9, subject to availability and destination.
