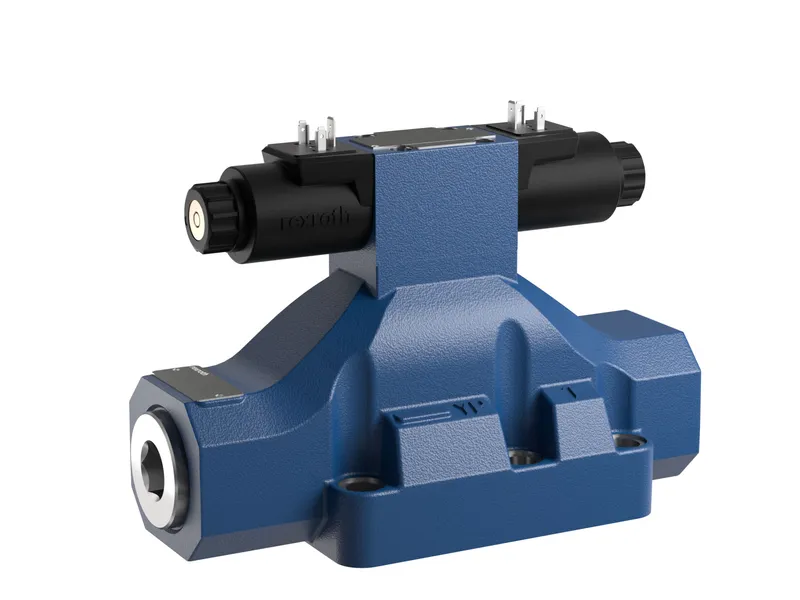

DIRECTIONAL SPOOL VALVE 4WEH16J1X/6HG24N9K4
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Directional on/off valve |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R988151632 be shipped?
R988151632 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R988151632 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R988151632 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R988151632, subject to availability and destination.
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
External pilot oil supply, external pilot oil return
Pilot-operated
Spool valve
With concealed auxiliary actuation
Specifications
Specifications
| Connection diagram | ISO 4401-07-07-0-05 |
| Product family | WEH, WH...6H |
| Max. flow [l/min] | 300.0 |
| Spool symbol | Symbol J |
| Type of connection | Subplate mounting |
| Size | 16 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 7.9 |
