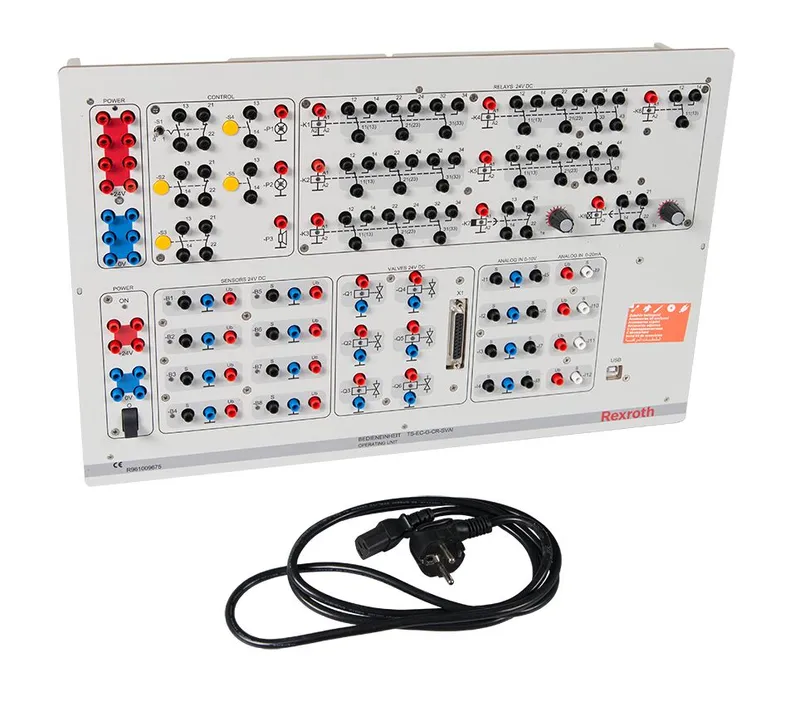

OPERATING UNIT TS-EC-G-CR-SVAI

For setting up electrical connections and circuits Control unit housing version BIBB module with the electrical functions switch, push button, relay and display BIBB module : 1 switch and 2 push buttons with 1 normally open and 1 normally closed contact each, 2 push buttons with normally open contact, 6 relays, on delay relay, off delay relay, 8 x 24 V distributor and 6 x 0 V distributor, 2 LED displays, 1 acoustic signal, power supply unit 24 V/5 A Control unit housing variant I/O module for connecting sensors and valves, with USB interface for simulation programs I/O module: Sensor connections with switching characteristics, 8 analog inputs 0 – 10 V, 4 analog inputs 4 – 20 mA, 6 valve connections, 25-pole Sub-D connector for connection at valve island, connection to PC via USB port Housing with fastening system for alu profiles Suitable for exercises at the Hydraulix 200 and Multiplex 200, 300 workstations Contact-protected lab sockets

Specifications
