Bosch Rexroth R939071234

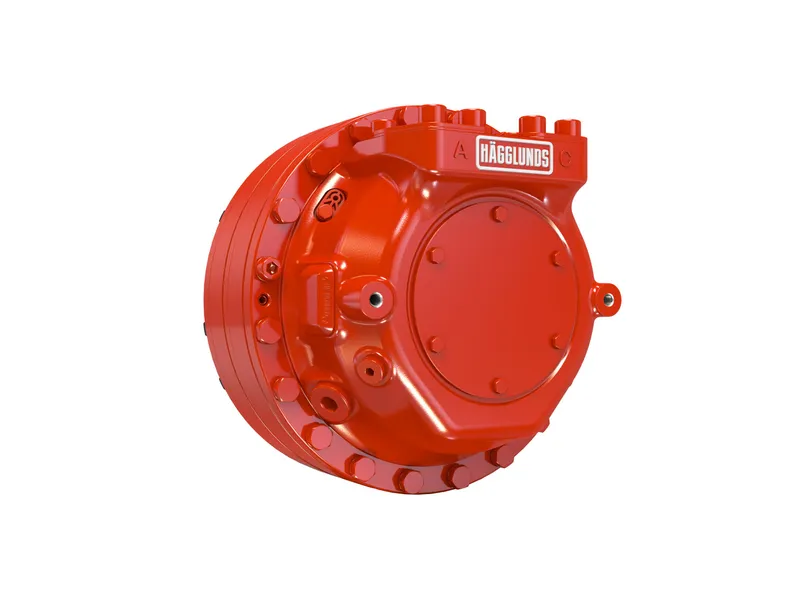

RADIAL PISTON MOTOR HÄGGLUNDS AMX 0020 0022 S F 00 0 0 0 V &
- MPN
- R939071234
- Category
- Hägglunds Atom
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R939071234?
In the miniscule Hägglunds Atom, revolutions occur at blinding speed. Yet most surprising is the motor’s strength – an elemental force that far surpasses its size. The Atom can deliver up to 13.6 kNm of torque, even at its top speed of 400 rpm. That gives it a maximum power of 394 kW, which outstrips other motors in its class.
With so much power in such a small space, the Hägglunds Atom is a perfect fit for mobile and marine use. At the same time, its peak pressure of 420 bar lets it withstand shock loads, making it a match for shredders and other unpredictable applications.
High torque density
Energy efficient
Through hole diameter 60 mm
Option for explosive environment available
High power density
Specifications
Specifications
| Product family | Hägglunds Atom |
| Displacement [cm³/rev] | 1414 |
| Specific Torque [Nm/bar] | 22.5 |
| Max speed [rpm] | 400 |
| Max pressure [bar] | 350 |
| Mounting alternatives, shaft | Spline DIN 5480 N |
| Displacement shift | Single speed motor |
| Type of seal | FPM (Viton) |
| Through hole kit | No |
| Increased robustness | No |
| Mounting alternatives, motor case | Front flange |
| Painting system | C3 (normal industrial atmosphere) |
| Painting colour | std RAL 2002 |
| Prepared for brake or tandem kit/Mounted brake | No |
| Temperature sensor | No |
| Reinforced bearing | No |
| Explosive environment | Non explosive environment |
| Internal paint | No |
| Design | Standard |
| Frame size | 20 |
| Speed sensor | yes |
| Weight [kg] | 68.5 |
R939071234: frequently asked questions
When can R939071234 be shipped?
R939071234 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R939071234 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R939071234 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R939071234, subject to availability and destination.
